[笔记]再笔记--边干边学Verilog HDL --005

lab05 -- SOS信号之一

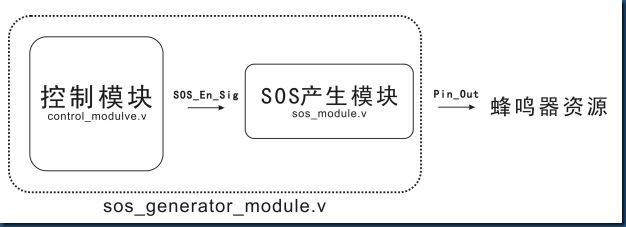

本实验要做一个sos信号发生器，如上图所示，由2个模块构成，其中sos_module.v用来产生sos信号，对应莫尔斯电码就是. . . _ _ _ . . .，其中点（短音）用100ms的高电平表示，杠（长音）用300ms的高电平表示，空格用50ms的间隔表示。control_module.v作为控制模块，用来产生一个使能信号sos_en_sig。最后，实验的演示验证部分，由于DE2不带蜂鸣器，暂用LEDG8代替。（当然，用蜂鸣器的效果要明显些）。

代码

sos_module.v

  1 /**
  2  * File name: sos_module.v
  3  *
  4  */
  5
  6 module sos_module
  7 (
  8     clk, rst_n, pin_out, sos_en
  9 );
 10
 11     input clk;
 12     input rst_n;
 13     input sos_en;
 14     output pin_out;
 15
 16     parameter T1MS = 16'd50000 - 1;
 17
 18     reg [15:0] count;
 19
 20     always @(posedge clk or negedge rst_n)
 21         if (!rst_n)
 22             count <= 16'd0;
 23         else if (iscount && count == T1MS)
 24             count <= 16'd0;
 25         else if (iscount)
 26             count <= count + 1'b1;
 27         else if (!iscount)
 28             count <= 16'd0;
 29
 30     reg [9:0] count_ms;
 31
 32     always @(posedge clk or negedge rst_n)
 33         if (!rst_n)
 34             count_ms <= 10'd0;
 35         else if (iscount && count == T1MS)
 36             count_ms <= count_ms + 1'b1;
 37         else if (!iscount)
 38             count_ms <= 10'd0;
 39
 40     reg iscount;
 41     reg rpin_out;
 42     reg [4:0] i;
 43
 44     always @(posedge clk or negedge rst_n)
 45         if (!rst_n)
 46             begin
 47                 iscount <= 1'b0;
 48                 rpin_out <= 1'b0;
 49                 i <= 5'd0;
 50             end
 51         else
 52             case(i)
 53                 5'd0:
 54                 if (sos_en)
 55                     i <= 5'd1;
 56
 57                 5'd1, 5'd3, 5'd5,        //short
 58                 5'd13, 5'd15, 5'd17:
 59                 if (count_ms == 10'd100)
 60                     begin
 61                         iscount <= 1'b0;
 62                         rpin_out <= 1'b0;
 63                         i <= i + 1'b1;
 64                     end
 65                 else
 66                     begin
 67                         iscount <= 1'b1;
 68                         rpin_out <= 1'b1;
 69                     end
 70
 71                 5'd7, 5'd9, 5'd11:    //long
 72                 if (count_ms == 10'd300)
 73                     begin
 74                         iscount <= 1'b0;
 75                         rpin_out <= 1'b0;
 76                         i <= i + 1'b1;
 77                     end
 78                 else
 79                     begin
 80                         iscount <= 1'b1;
 81                         rpin_out <= 1'b1;
 82                     end
 83
 84                 5'd2, 5'd4, 5'd6,        //interval
 85                 5'd8, 5'd10, 5'd12,
 86                 5'd14, 5'd16, 5'd18:
 87                     if (count_ms == 10'd50)
 88                         begin
 89                             iscount <= 1'b0;
 90                             i <= i + 1'b1;
 91                         end
 92                     else
 93                         iscount <= 1'b1;
 94
 95                 5'd19:        //end
 96                     begin
 97                         rpin_out <= 1'b0;
 98                         i <= 5'd0;
 99                     end
100             endcase
101
102         assign pin_out = rpin_out;
103
104 endmodule
105
106
107

control_module.v

 1 /**
 2  * File name : control_module.v
 3  *
 4  */
 5
 6 module control_module
 7 (
 8     clk, rst_n, sos_en
 9 );
10
11     input clk;
12     input rst_n;
13     output sos_en;
14
15     parameter T3S = 28'd150_000_000 - 1;
16
17     reg isen;
18     reg [27:0] count;
19
20     always @(posedge clk or negedge rst_n)
21         if (!rst_n)
22             begin
23                 isen <= 1'b0;
24                 count <= 28'd0;
25             end
26         else if (count <= T3S)
27             begin
28                 isen <= 1'b1;
29                 count <= 26'd0;
30             end
31         else
32             begin
33                 isen <= 1'b0;
34                 count <= count + 1'b1;
35             end
36
37     assign sos_en = isen;
38
39 endmodule
40
41

sos_generator_module.v

 1 /**
 2  * File name: sos_generator_module.v
 3  *-----------------------------------
 4  * pins: KEY0-rst_n, LEDG8-pin_out
 5  *-----------------------------------
 6  * yf.x
 7  * 7-15-2011
 8  *
 9  */
10
11 module sos_generator_module
12 (
13     CLOCK_50, KEY, LEDG
14 );
15
16     input CLOCK_50;
17     input [0:0] KEY;
18     output [8:8] LEDG;
19
20     wire sos_en;
21
22     control_module U1
23     (
24         .clk (CLOCK_50),
25         .rst_n (KEY),
26         .sos_en (sos_en)
27     );
28
29     wire pin_out_wire;
30
31     sos_module U2
32     (
33         .clk (CLOCK_50),
34         .rst_n (KEY),
35         .sos_en (sos_en),
36         .pin_out (pin_out_wire)
37     );
38
39     assign LEDG = pin_out_wire;
40
41 endmodule

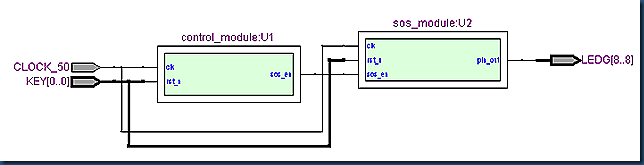

RTL图

小结

控制模块每隔3秒就产生一个使能信号，促使功能模块发出sos信号。至于代码，做到这里，已经能感觉到akuei2的风格，即建模的“仿顺序操作”的思想。
