实验：4级流水线32bits全加器

一.实验内容

本次实验为仿真实验，设计完成后仅需进行行为仿真。

实验要求：

1. 实现 4 级流水线 32bit 全加器，需带有流水线暂停和刷新；
2. 模拟流水线暂停，仿真时控制 10 周期后暂停流水线 2 周期（第 2 级），流水线恢复流动；
3. 模拟流水线刷新，仿真时控制 15 周期时流水线刷新（第 3 级）。

二.实验设计

（1）功能描述

输入两个32位数据进行加法运算，以四级流水线来执行，最终输出结果与溢出位。运算模块具有暂停和刷新功能。

（2）接口定义

接口	I/O端口	位宽	功能描述
cin_a	input	32	第一个输入数据端口
cin_b	input	32	第二个输入数据端口
rst	input	1	刷新端口
clk	input	1	时钟端口
stop	input	1	停止端口
c_in	input	1	进位端口
c_out	input	1	溢出端口
sum	input	32	输入结果

（3）逻辑控制

我们将32位相加分为四次进行，即每次相加8位，然后用寄存器存储每次相加后的结果、进位情况以及未相加部分。其中cout1、cout2、cout3、cout4来存储溢出位，sum1、sum2、sum3、sum4存储每次累加后的结果，surA1、surA2、surA3存储cin_a的未参与相加数据，surB1、surB2、surB3存储cin_b的未参与相加数据。

三.verilog语言流水线代码

module add32_4(
    input [31:0] cin_a, //输入两个操作数
    input [31:0] cin_b,
    input rst, //归零
    input clk, //时钟
    input stop, //停止
    input c_in, //进位标志
    output wire c_out, //溢出标志
    output wire [31:0] sum //和
    );

    reg cout1,cout2,cout3,cout4; //存储溢出位
    //存储对应每级累加后的结果
    reg [7:0] sum1;
    reg [15:0] sum2;
    reg [23:0] sum3;
    reg [31:0] sum4;
    //存储每次加8位后剩余的数据
    reg [23:0] surA1,surB1;
    reg [15:0] surA2,surB2;
    reg [7:0] surA3,surB3;

    //第一级
    always@(posedge clk)
    begin
        if(rst)
        begin
            cout1<=0;
            sum1<=0;
            surA1<=0;
            surB1<=0;
        end
        else if(stop)
        begin
            cout1<=cout1;
            sum1<=sum1;
            surA1<=surA1;
            surB1<=surB1;
        end
        else
        begin
            {cout1,sum1} = {1'b0,cin_a[7:0]} + {1'b0,cin_b[7:0]} + {7'b0000_000,c_in};
            surA1<=cin_a[31:8];
            surB1<=cin_b[31:8];
        end
    end

    //第二级
    always@(posedge clk)
    begin
        if(rst)
        begin
            cout2<=0;
            sum2<=0;
            surA2<=0;
            surB2<=0;
        end
        else if(stop)
        begin
            cout2<=cout2;
            sum2<=sum2;
            surA2<=surA2;
            surB2<=surB2;
        end
        else
        begin
            {cout2,sum2[15:7]} = {1'b0,surA1[7:0]} + {1'b0,surB1[7:0]} + {7'b0000_000,cout1};
            sum2[7:0]<=sum1;
            surA2<=surA1[23:8];
            surB2<=surB1[23:8];
        end
    end

    //第三级
    always@(posedge clk)
    begin
        if(rst)
        begin
            cout3<=0;
            sum3<=0;
            surA3<=0;
            surB3<=0;
        end
        else if(stop)
        begin
            cout3<=cout3;
            sum3<=sum3;
            surA3<=surA3;
            surB3<=surB3;
        end
        else
        begin
            {cout3,sum3[23:16]} = {1'b0,surA2[7:0]} + {1'b0,surB2[7:0]} + {7'b0000_000,cout2};
            sum3[15:0]<=sum2;
            surA3<=surA2[15:8];
            surB3<=surB2[15:8];
        end
    end

    //第四级
    always@(posedge clk)
    begin
        if(rst)
        begin
            cout4<=0;
            sum4<=0;
        end
        else if(stop)
        begin
            cout4<=cout4;
            sum4<=sum4;
        end
        else
        begin
            {cout4,sum4[31:24]} = {1'b0,surA3[7:0]} + {1'b0,surB3[7:0]} + {7'b0000_000,cout3};
            sum4[23:0]<=sum3;
        end
    end

    assign sum=sum4;
    assign c_out=cout4;

endmodule

四.仿真文件

module add32_4_test( );
    reg [31:0] cin_a;
    reg [31:0] cin_b;
    reg clk;
    reg rst;
    reg cin;
    reg stop;
    wire cout;
    wire [31:0] sum;


    initial begin
        clk = 1;
        rst = 0;
        stop = 0;
        cin_a = 32'h0000_0000;cin_b=32'h0000_0000;cin=1'b0;
        @(posedge clk)

                       cin_a = 32'h0000_0000;cin_b=32'h0000_0000;cin=1'b0;
        @(posedge clk) cin_a = 32'h0000_0000;cin_b=32'h0000_0000;cin=1'b0;
        @(posedge clk) cin_a = 32'h0000_0001;cin_b=32'h0000_0001;cin=1'b0;
        @(posedge clk) cin_a = 32'h0000_0010;cin_b=32'h0000_0001;cin=1'b0;
        @(posedge clk) cin_a = 32'h0000_0100;cin_b=32'h0000_0001;cin=1'b0;
        @(posedge clk) cin_a = 32'h0000_1000;cin_b=32'h0000_0001;cin=1'b1;
        @(posedge clk) cin_a = 32'h0001_0000;cin_b=32'h0000_0001;cin=1'b1;
        @(posedge clk) cin_a = 32'h0010_0000;cin_b=32'h0000_0001;cin=1'b1;
        @(posedge clk) stop=1;cin_a = 32'h0100_0000;cin_b=32'h0000_0001;cin=1'b1;
        @(posedge clk) cin_a = 32'h1000_0001;cin_b=32'h0000_0001;cin=1'b1;
        @(posedge clk) stop=0;cin_a = 32'h1000_1111;cin_b=32'h0000_0001;cin=1'b1;
        @(posedge clk) cin_a = 32'h1000_0001;cin_b=32'h0000_0001;cin=1'b1;
        @(posedge clk) cin_a = 32'h1000_0001;cin_b=32'h0000_0001;cin=1'b1;
        @(posedge clk) cin_a = 32'h1000_0001;cin_b=32'h0000_0001;cin=1'b1;
        @(posedge clk) rst=1;cin_a = 32'h1000_0001;cin_b=32'h0000_0001;cin=1'b1;
        @(posedge clk) cin_a = 32'h1000_0011;cin_b=32'h0000_0001;cin=1'b1;
        @(posedge clk) cin_a = 32'h1000_1011;cin_b=32'h0000_0001;cin=1'b1;
        @(posedge clk) cin_a = 32'h1000_0111;cin_b=32'h0000_0001;cin=1'b1;
        repeat(10) @(posedge clk);
        $finish;
    end

    always #5  clk = ~clk;

    add32_4 a(cin_a,cin_b,rst,clk,stop,cin,cout,sum);

endmodule

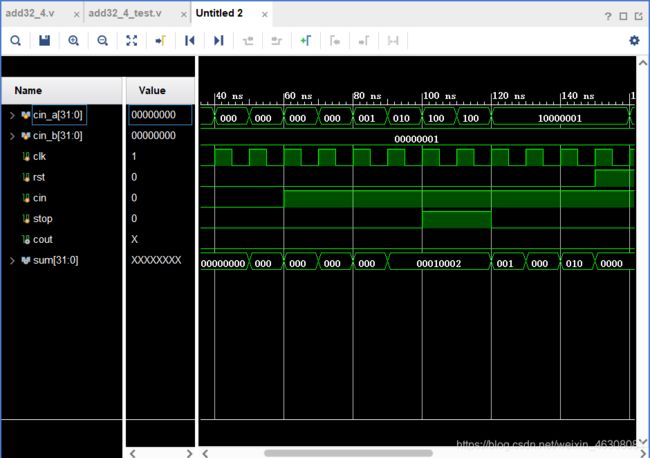

仿真结果
