开发自己的IDE（五）
休息了大半个月，没写自己的代码了。国庆过了，再不为自己写写代码就有负罪感了。这篇文章所提到的所有工具的代码都可以在 Vczh Library++ 3.0的页面找到。 上一篇文章提到了一个状态机绘图工具，直到最近我终于把他的第一个部分给做好了。现在可以画图之后产生一个可以供 这里所描述的高亮控件所使用的着色器了。第一步我们要使用TokenizerBuilder绘制一个状态机：

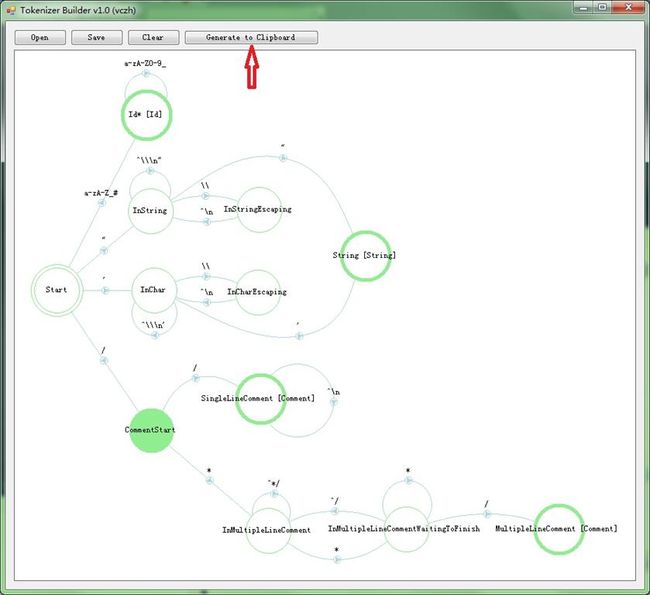

然后点击“Generate to Clipboard”按钮，就会要求你输入一个类名然后产生着色器插件的代码了。上面这个是一个简化过的C#代码着色状态机，其中Id有个星号代表不是所有走到这个状态的东西都可以叫Id（其实是关键字，懒得改了）。中括号里面的是颜色的名称。这些名称最终是要拿来生成代码的，所以必须是C#接受的可以拿来做变量名的东西，不过我也没检查，只管拼接字符串生成。

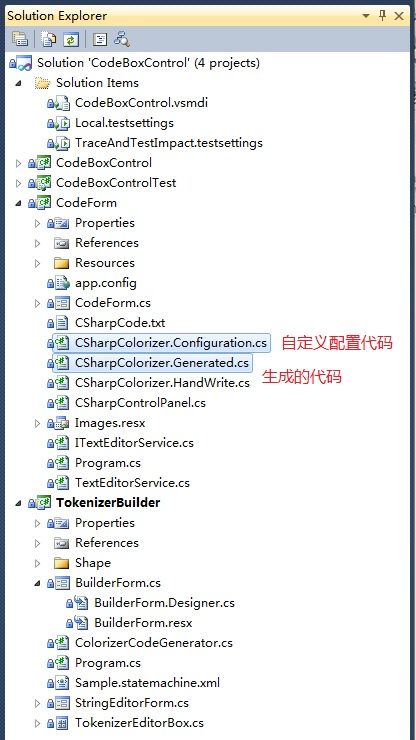

我把生成后的代码贴在了CodeForm工程的CSharpTokenizer.Generated.cs里：
第三步就是要自己建立一个CSharpColorizer.Configuration.cs了。C#的partial class真是伟大，简直就是为了代码生成而设计出来的。在这里我们看看生成后的CSharpColorizer.Generated.cs的代码：
1
using
System;
2 using System.Collections.Generic;
3 using System.Linq;
4 using System.Text;
5 using CodeBoxControl;
6 using System.Drawing;
7
8 namespace CodeForm
9 {
10 partial class CSharpColorizer : ITextEditorColorizer
11 {
12 // public const int NormalColorId = 0;
13 public const int IdColorId = NormalColorId + 1 ;
14 public const int StringColorId = NormalColorId + 2 ;
15 public const int CommentColorId = NormalColorId + 3 ;
16
17 // private readonly Color HighlightColor = Color.FromArgb(173, 214, 255);
18 // private readonly Color NormalColor = Color.FromArgb(0, 0, 0);
19 // private readonly Color IdColor = Color.FromArgb(0, 0, 0);
20 // private readonly Color StringColor = Color.FromArgb(0, 0, 0);
21 // private readonly Color CommentColor = Color.FromArgb(0, 0, 0);
22
23 private const int StartState = 0 ;
24 private const int NormalState = 1 ;
25 private const int IdStateId = 2 ;
26 private const int InStringStateId = 3 ;
27 private const int InStringEscapingStateId = 4 ;
28 private const int InCharStateId = 5 ;
29 private const int InCharEscapingStateId = 6 ;
30 private const int StringStateId = 7 ;
31 private const int CommentStartStateId = 8 ;
32 private const int SingleLineCommentStateId = 9 ;
33 private const int InMultipleLineCommentStateId = 10 ;
34 private const int InMultipleLineCommentWaitingToFinishStateId = 11 ;
35 private const int MultipleLineCommentStateId = 12 ;
36
37 private TextEditorColorItem[] colorItems = new TextEditorColorItem[NormalColorId + 4 ];
38 private int [] charset = new int [ 65536 ];
39 private int [,] transitions = new int [ 13 , 11 ];
40 private bool [] finalStates = new bool [ 13 ];
41 private int [] stateColors = new int [ 13 ];
42
43 public TextEditorColorItem[] ColorItems
44 {
45 get
46 {
47 return this .colorItems;
48 }
49 }
50
51 public CSharpColorizer()
52 {
53 this .colorItems[NormalColorId] = new TextEditorColorItem()
54 {
55 Text = NormalColor,
56 HighlightText = NormalColor,
57 Highlight = HighlightColor
58 };
59 this .colorItems[IdColorId] = new TextEditorColorItem()
60 {
61 Text = IdColor,
62 HighlightText = IdColor,
63 Highlight = HighlightColor
64 };
65 this .colorItems[StringColorId] = new TextEditorColorItem()
66 {
67 Text = StringColor,
68 HighlightText = StringColor,
69 Highlight = HighlightColor
70 };
71 this .colorItems[CommentColorId] = new TextEditorColorItem()
72 {
73 Text = CommentColor,
74 HighlightText = CommentColor,
75 Highlight = HighlightColor
76 };
77 // You should write your own CreateAdditionalColors() implementation to add additional colors.
78 // You can modify the NormalColorId and put all additional colors ids before NormalColorId.
79 // It is recommended to use another partial class to store all customized code.
80 CreateAdditionalColors();
81 CreateStateMachine();
82 }
83 public int ColorizeLine( char [] items, int length, int initialState, int [] colors)
84 {
85 int state = initialState;
86 int itemStart = 0 ;
87 int lastFinalState = StartState;
88
89 for ( int i = 0 ; i <= length; i ++ )
90 {
91 if (i != length)
92 {
93 state = transitions[state, charset[items[i]]];
94 if (state == StartState)
95 {
96 state = transitions[state, charset[items[i]]];
97 }
98 }
99 else
100 {
101 lastFinalState = state;
102 }
103
104 if (i == length || lastFinalState != state && lastFinalState != StartState)
105 {
106 int color = stateColors[lastFinalState];
107 switch (lastFinalState)
108 {
109 case IdStateId:
110 // You should write your own IsValidId implementation.
111 color = IsValidId( new string (items, itemStart, Math.Min(i, length) - itemStart)) ? stateColors[lastFinalState] : NormalColorId;
112 break ;
113 }
114 for ( int j = itemStart; j < i; j ++ )
115 {
116 colors[j] = color;
117 }
118 itemStart = i;
119 }
120 lastFinalState = finalStates[state] ? state : StartState;
121 }
122
123 return transitions[state, charset[ ' \n ' ]];
124 }
125
126 private void CreateStateMachine()
127 {
128 for ( int i = 0 ; i < 10 ; i ++ )
129 charset[i] = 0 ;
130 for ( int i = 10 ; i < 11 ; i ++ )
131 charset[i] = 1 ;
132 for ( int i = 11 ; i < 34 ; i ++ )
133 charset[i] = 0 ;
134 for ( int i = 34 ; i < 35 ; i ++ )
135 charset[i] = 2 ;
136 for ( int i = 35 ; i < 36 ; i ++ )
137 charset[i] = 3 ;
138 for ( int i = 36 ; i < 39 ; i ++ )
139 charset[i] = 0 ;
140 for ( int i = 39 ; i < 40 ; i ++ )
141 charset[i] = 4 ;
142 for ( int i = 40 ; i < 42 ; i ++ )
143 charset[i] = 0 ;
144 for ( int i = 42 ; i < 43 ; i ++ )
145 charset[i] = 5 ;
146 for ( int i = 43 ; i < 47 ; i ++ )
147 charset[i] = 0 ;
148 for ( int i = 47 ; i < 48 ; i ++ )
149 charset[i] = 6 ;
150 for ( int i = 48 ; i < 58 ; i ++ )
151 charset[i] = 7 ;
152 for ( int i = 58 ; i < 65 ; i ++ )
153 charset[i] = 0 ;
154 for ( int i = 65 ; i < 91 ; i ++ )
155 charset[i] = 8 ;
156 for ( int i = 91 ; i < 92 ; i ++ )
157 charset[i] = 0 ;
158 for ( int i = 92 ; i < 93 ; i ++ )
159 charset[i] = 9 ;
160 for ( int i = 93 ; i < 95 ; i ++ )
161 charset[i] = 0 ;
162 for ( int i = 95 ; i < 96 ; i ++ )
163 charset[i] = 8 ;
164 for ( int i = 96 ; i < 97 ; i ++ )
165 charset[i] = 0 ;
166 for ( int i = 97 ; i < 123 ; i ++ )
167 charset[i] = 8 ;
168 for ( int i = 123 ; i < 65536 ; i ++ )
169 charset[i] = 0 ;
170
171 finalStates[ 0 ] = false ;
172 finalStates[ 1 ] = true ;
173 finalStates[ 2 ] = true ;
174 finalStates[ 3 ] = false ;
175 finalStates[ 4 ] = false ;
176 finalStates[ 5 ] = false ;
177 finalStates[ 6 ] = false ;
178 finalStates[ 7 ] = true ;
179 finalStates[ 8 ] = false ;
180 finalStates[ 9 ] = true ;
181 finalStates[ 10 ] = false ;
182 finalStates[ 11 ] = false ;
183 finalStates[ 12 ] = true ;
184
185 stateColors[ 0 ] = NormalColorId + 0 ;
186 stateColors[ 1 ] = NormalColorId + 0 ;
187 stateColors[ 2 ] = NormalColorId + 1 ;
188 stateColors[ 3 ] = NormalColorId + 2 ;
189 stateColors[ 4 ] = NormalColorId + 2 ;
190 stateColors[ 5 ] = NormalColorId + 2 ;
191 stateColors[ 6 ] = NormalColorId + 2 ;
192 stateColors[ 7 ] = NormalColorId + 2 ;
193 stateColors[ 8 ] = NormalColorId + 0 ;
194 stateColors[ 9 ] = NormalColorId + 3 ;
195 stateColors[ 10 ] = NormalColorId + 3 ;
196 stateColors[ 11 ] = NormalColorId + 3 ;
197 stateColors[ 12 ] = NormalColorId + 3 ;
198
199 transitions[ 0 , 0 ] = 1 ;
200 transitions[ 0 , 1 ] = 1 ;
201 transitions[ 0 , 2 ] = 3 ;
202 transitions[ 0 , 3 ] = 2 ;
203 transitions[ 0 , 4 ] = 5 ;
204 transitions[ 0 , 5 ] = 1 ;
205 transitions[ 0 , 6 ] = 8 ;
206 transitions[ 0 , 7 ] = 1 ;
207 transitions[ 0 , 8 ] = 2 ;
208 transitions[ 0 , 9 ] = 1 ;
209 transitions[ 0 , 10 ] = 1 ;
210 transitions[ 1 , 0 ] = 0 ;
211 transitions[ 1 , 1 ] = 0 ;
212 transitions[ 1 , 2 ] = 0 ;
213 transitions[ 1 , 3 ] = 0 ;
214 transitions[ 1 , 4 ] = 0 ;
215 transitions[ 1 , 5 ] = 0 ;
216 transitions[ 1 , 6 ] = 0 ;
217 transitions[ 1 , 7 ] = 0 ;
218 transitions[ 1 , 8 ] = 0 ;
219 transitions[ 1 , 9 ] = 0 ;
220 transitions[ 1 , 10 ] = 0 ;
221 transitions[ 2 , 0 ] = 0 ;
222 transitions[ 2 , 1 ] = 0 ;
223 transitions[ 2 , 2 ] = 0 ;
224 transitions[ 2 , 3 ] = 0 ;
225 transitions[ 2 , 4 ] = 0 ;
226 transitions[ 2 , 5 ] = 0 ;
227 transitions[ 2 , 6 ] = 0 ;
228 transitions[ 2 , 7 ] = 2 ;
229 transitions[ 2 , 8 ] = 2 ;
230 transitions[ 2 , 9 ] = 0 ;
231 transitions[ 2 , 10 ] = 0 ;
232 transitions[ 3 , 0 ] = 3 ;
233 transitions[ 3 , 1 ] = 0 ;
234 transitions[ 3 , 2 ] = 7 ;
235 transitions[ 3 , 3 ] = 3 ;
236 transitions[ 3 , 4 ] = 3 ;
237 transitions[ 3 , 5 ] = 3 ;
238 transitions[ 3 , 6 ] = 3 ;
239 transitions[ 3 , 7 ] = 3 ;
240 transitions[ 3 , 8 ] = 3 ;
241 transitions[ 3 , 9 ] = 4 ;
242 transitions[ 3 , 10 ] = 0 ;
243 transitions[ 4 , 0 ] = 3 ;
244 transitions[ 4 , 1 ] = 0 ;
245 transitions[ 4 , 2 ] = 3 ;
246 transitions[ 4 , 3 ] = 3 ;
247 transitions[ 4 , 4 ] = 3 ;
248 transitions[ 4 , 5 ] = 3 ;
249 transitions[ 4 , 6 ] = 3 ;
250 transitions[ 4 , 7 ] = 3 ;
251 transitions[ 4 , 8 ] = 3 ;
252 transitions[ 4 , 9 ] = 3 ;
253 transitions[ 4 , 10 ] = 0 ;
254 transitions[ 5 , 0 ] = 5 ;
255 transitions[ 5 , 1 ] = 0 ;
256 transitions[ 5 , 2 ] = 5 ;
257 transitions[ 5 , 3 ] = 5 ;
258 transitions[ 5 , 4 ] = 7 ;
259 transitions[ 5 , 5 ] = 5 ;
260 transitions[ 5 , 6 ] = 5 ;
261 transitions[ 5 , 7 ] = 5 ;
262 transitions[ 5 , 8 ] = 5 ;
263 transitions[ 5 , 9 ] = 6 ;
264 transitions[ 5 , 10 ] = 0 ;
265 transitions[ 6 , 0 ] = 5 ;
266 transitions[ 6 , 1 ] = 0 ;
267 transitions[ 6 , 2 ] = 5 ;
268 transitions[ 6 , 3 ] = 5 ;
269 transitions[ 6 , 4 ] = 5 ;
270 transitions[ 6 , 5 ] = 5 ;
271 transitions[ 6 , 6 ] = 5 ;
272 transitions[ 6 , 7 ] = 5 ;
273 transitions[ 6 , 8 ] = 5 ;
274 transitions[ 6 , 9 ] = 5 ;
275 transitions[ 6 , 10 ] = 0 ;
276 transitions[ 7 , 0 ] = 0 ;
277 transitions[ 7 , 1 ] = 0 ;
278 transitions[ 7 , 2 ] = 0 ;
279 transitions[ 7 , 3 ] = 0 ;
280 transitions[ 7 , 4 ] = 0 ;
281 transitions[ 7 , 5 ] = 0 ;
282 transitions[ 7 , 6 ] = 0 ;
283 transitions[ 7 , 7 ] = 0 ;
284 transitions[ 7 , 8 ] = 0 ;
285 transitions[ 7 , 9 ] = 0 ;
286 transitions[ 7 , 10 ] = 0 ;
287 transitions[ 8 , 0 ] = 1 ;
288 transitions[ 8 , 1 ] = 1 ;
289 transitions[ 8 , 2 ] = 1 ;
290 transitions[ 8 , 3 ] = 1 ;
291 transitions[ 8 , 4 ] = 1 ;
292 transitions[ 8 , 5 ] = 10 ;
293 transitions[ 8 , 6 ] = 9 ;
294 transitions[ 8 , 7 ] = 1 ;
295 transitions[ 8 , 8 ] = 1 ;
296 transitions[ 8 , 9 ] = 1 ;
297 transitions[ 8 , 10 ] = 1 ;
298 transitions[ 9 , 0 ] = 9 ;
299 transitions[ 9 , 1 ] = 0 ;
300 transitions[ 9 , 2 ] = 9 ;
301 transitions[ 9 , 3 ] = 9 ;
302 transitions[ 9 , 4 ] = 9 ;
303 transitions[ 9 , 5 ] = 9 ;
304 transitions[ 9 , 6 ] = 9 ;
305 transitions[ 9 , 7 ] = 9 ;
306 transitions[ 9 , 8 ] = 9 ;
307 transitions[ 9 , 9 ] = 9 ;
308 transitions[ 9 , 10 ] = 0 ;
309 transitions[ 10 , 0 ] = 10 ;
310 transitions[ 10 , 1 ] = 10 ;
311 transitions[ 10 , 2 ] = 10 ;
312 transitions[ 10 , 3 ] = 10 ;
313 transitions[ 10 , 4 ] = 10 ;
314 transitions[ 10 , 5 ] = 11 ;
315 transitions[ 10 , 6 ] = 0 ;
316 transitions[ 10 , 7 ] = 10 ;
317 transitions[ 10 , 8 ] = 10 ;
318 transitions[ 10 , 9 ] = 10 ;
319 transitions[ 10 , 10 ] = 0 ;
320 transitions[ 11 , 0 ] = 10 ;
321 transitions[ 11 , 1 ] = 10 ;
322 transitions[ 11 , 2 ] = 10 ;
323 transitions[ 11 , 3 ] = 10 ;
324 transitions[ 11 , 4 ] = 10 ;
325 transitions[ 11 , 5 ] = 10 ;
326 transitions[ 11 , 6 ] = 12 ;
327 transitions[ 11 , 7 ] = 10 ;
328 transitions[ 11 , 8 ] = 10 ;
329 transitions[ 11 , 9 ] = 10 ;
330 transitions[ 11 , 10 ] = 0 ;
331 transitions[ 12 , 0 ] = 0 ;
332 transitions[ 12 , 1 ] = 0 ;
333 transitions[ 12 , 2 ] = 0 ;
334 transitions[ 12 , 3 ] = 0 ;
335 transitions[ 12 , 4 ] = 0 ;
336 transitions[ 12 , 5 ] = 0 ;
337 transitions[ 12 , 6 ] = 0 ;
338 transitions[ 12 , 7 ] = 0 ;
339 transitions[ 12 , 8 ] = 0 ;
340 transitions[ 12 , 9 ] = 0 ;
341 transitions[ 12 , 10 ] = 0 ;
342 }
343 }
344 }
345
2 using System.Collections.Generic;
3 using System.Linq;
4 using System.Text;
5 using CodeBoxControl;
6 using System.Drawing;
7
8 namespace CodeForm
9 {
10 partial class CSharpColorizer : ITextEditorColorizer
11 {
12 // public const int NormalColorId = 0;
13 public const int IdColorId = NormalColorId + 1 ;
14 public const int StringColorId = NormalColorId + 2 ;
15 public const int CommentColorId = NormalColorId + 3 ;
16
17 // private readonly Color HighlightColor = Color.FromArgb(173, 214, 255);
18 // private readonly Color NormalColor = Color.FromArgb(0, 0, 0);
19 // private readonly Color IdColor = Color.FromArgb(0, 0, 0);
20 // private readonly Color StringColor = Color.FromArgb(0, 0, 0);
21 // private readonly Color CommentColor = Color.FromArgb(0, 0, 0);
22
23 private const int StartState = 0 ;
24 private const int NormalState = 1 ;
25 private const int IdStateId = 2 ;
26 private const int InStringStateId = 3 ;
27 private const int InStringEscapingStateId = 4 ;
28 private const int InCharStateId = 5 ;
29 private const int InCharEscapingStateId = 6 ;
30 private const int StringStateId = 7 ;
31 private const int CommentStartStateId = 8 ;
32 private const int SingleLineCommentStateId = 9 ;
33 private const int InMultipleLineCommentStateId = 10 ;
34 private const int InMultipleLineCommentWaitingToFinishStateId = 11 ;
35 private const int MultipleLineCommentStateId = 12 ;
36
37 private TextEditorColorItem[] colorItems = new TextEditorColorItem[NormalColorId + 4 ];
38 private int [] charset = new int [ 65536 ];
39 private int [,] transitions = new int [ 13 , 11 ];
40 private bool [] finalStates = new bool [ 13 ];
41 private int [] stateColors = new int [ 13 ];
42
43 public TextEditorColorItem[] ColorItems
44 {
45 get
46 {
47 return this .colorItems;
48 }
49 }
50
51 public CSharpColorizer()
52 {
53 this .colorItems[NormalColorId] = new TextEditorColorItem()
54 {
55 Text = NormalColor,
56 HighlightText = NormalColor,
57 Highlight = HighlightColor
58 };
59 this .colorItems[IdColorId] = new TextEditorColorItem()
60 {
61 Text = IdColor,
62 HighlightText = IdColor,
63 Highlight = HighlightColor
64 };
65 this .colorItems[StringColorId] = new TextEditorColorItem()
66 {
67 Text = StringColor,
68 HighlightText = StringColor,
69 Highlight = HighlightColor
70 };
71 this .colorItems[CommentColorId] = new TextEditorColorItem()
72 {
73 Text = CommentColor,
74 HighlightText = CommentColor,
75 Highlight = HighlightColor
76 };
77 // You should write your own CreateAdditionalColors() implementation to add additional colors.
78 // You can modify the NormalColorId and put all additional colors ids before NormalColorId.
79 // It is recommended to use another partial class to store all customized code.
80 CreateAdditionalColors();
81 CreateStateMachine();
82 }
83 public int ColorizeLine( char [] items, int length, int initialState, int [] colors)
84 {
85 int state = initialState;
86 int itemStart = 0 ;
87 int lastFinalState = StartState;
88
89 for ( int i = 0 ; i <= length; i ++ )
90 {
91 if (i != length)
92 {
93 state = transitions[state, charset[items[i]]];
94 if (state == StartState)
95 {
96 state = transitions[state, charset[items[i]]];
97 }
98 }
99 else
100 {
101 lastFinalState = state;
102 }
103
104 if (i == length || lastFinalState != state && lastFinalState != StartState)
105 {
106 int color = stateColors[lastFinalState];
107 switch (lastFinalState)
108 {
109 case IdStateId:
110 // You should write your own IsValidId implementation.
111 color = IsValidId( new string (items, itemStart, Math.Min(i, length) - itemStart)) ? stateColors[lastFinalState] : NormalColorId;
112 break ;
113 }
114 for ( int j = itemStart; j < i; j ++ )
115 {
116 colors[j] = color;
117 }
118 itemStart = i;
119 }
120 lastFinalState = finalStates[state] ? state : StartState;
121 }
122
123 return transitions[state, charset[ ' \n ' ]];
124 }
125
126 private void CreateStateMachine()
127 {
128 for ( int i = 0 ; i < 10 ; i ++ )
129 charset[i] = 0 ;
130 for ( int i = 10 ; i < 11 ; i ++ )
131 charset[i] = 1 ;
132 for ( int i = 11 ; i < 34 ; i ++ )
133 charset[i] = 0 ;
134 for ( int i = 34 ; i < 35 ; i ++ )
135 charset[i] = 2 ;
136 for ( int i = 35 ; i < 36 ; i ++ )
137 charset[i] = 3 ;
138 for ( int i = 36 ; i < 39 ; i ++ )
139 charset[i] = 0 ;
140 for ( int i = 39 ; i < 40 ; i ++ )
141 charset[i] = 4 ;
142 for ( int i = 40 ; i < 42 ; i ++ )
143 charset[i] = 0 ;
144 for ( int i = 42 ; i < 43 ; i ++ )
145 charset[i] = 5 ;
146 for ( int i = 43 ; i < 47 ; i ++ )
147 charset[i] = 0 ;
148 for ( int i = 47 ; i < 48 ; i ++ )
149 charset[i] = 6 ;
150 for ( int i = 48 ; i < 58 ; i ++ )
151 charset[i] = 7 ;
152 for ( int i = 58 ; i < 65 ; i ++ )
153 charset[i] = 0 ;
154 for ( int i = 65 ; i < 91 ; i ++ )
155 charset[i] = 8 ;
156 for ( int i = 91 ; i < 92 ; i ++ )
157 charset[i] = 0 ;
158 for ( int i = 92 ; i < 93 ; i ++ )
159 charset[i] = 9 ;
160 for ( int i = 93 ; i < 95 ; i ++ )
161 charset[i] = 0 ;
162 for ( int i = 95 ; i < 96 ; i ++ )
163 charset[i] = 8 ;
164 for ( int i = 96 ; i < 97 ; i ++ )
165 charset[i] = 0 ;
166 for ( int i = 97 ; i < 123 ; i ++ )
167 charset[i] = 8 ;
168 for ( int i = 123 ; i < 65536 ; i ++ )
169 charset[i] = 0 ;
170
171 finalStates[ 0 ] = false ;
172 finalStates[ 1 ] = true ;
173 finalStates[ 2 ] = true ;
174 finalStates[ 3 ] = false ;
175 finalStates[ 4 ] = false ;
176 finalStates[ 5 ] = false ;
177 finalStates[ 6 ] = false ;
178 finalStates[ 7 ] = true ;
179 finalStates[ 8 ] = false ;
180 finalStates[ 9 ] = true ;
181 finalStates[ 10 ] = false ;
182 finalStates[ 11 ] = false ;
183 finalStates[ 12 ] = true ;
184
185 stateColors[ 0 ] = NormalColorId + 0 ;
186 stateColors[ 1 ] = NormalColorId + 0 ;
187 stateColors[ 2 ] = NormalColorId + 1 ;
188 stateColors[ 3 ] = NormalColorId + 2 ;
189 stateColors[ 4 ] = NormalColorId + 2 ;
190 stateColors[ 5 ] = NormalColorId + 2 ;
191 stateColors[ 6 ] = NormalColorId + 2 ;
192 stateColors[ 7 ] = NormalColorId + 2 ;
193 stateColors[ 8 ] = NormalColorId + 0 ;
194 stateColors[ 9 ] = NormalColorId + 3 ;
195 stateColors[ 10 ] = NormalColorId + 3 ;
196 stateColors[ 11 ] = NormalColorId + 3 ;
197 stateColors[ 12 ] = NormalColorId + 3 ;
198
199 transitions[ 0 , 0 ] = 1 ;
200 transitions[ 0 , 1 ] = 1 ;
201 transitions[ 0 , 2 ] = 3 ;
202 transitions[ 0 , 3 ] = 2 ;
203 transitions[ 0 , 4 ] = 5 ;
204 transitions[ 0 , 5 ] = 1 ;
205 transitions[ 0 , 6 ] = 8 ;
206 transitions[ 0 , 7 ] = 1 ;
207 transitions[ 0 , 8 ] = 2 ;
208 transitions[ 0 , 9 ] = 1 ;
209 transitions[ 0 , 10 ] = 1 ;
210 transitions[ 1 , 0 ] = 0 ;
211 transitions[ 1 , 1 ] = 0 ;
212 transitions[ 1 , 2 ] = 0 ;
213 transitions[ 1 , 3 ] = 0 ;
214 transitions[ 1 , 4 ] = 0 ;
215 transitions[ 1 , 5 ] = 0 ;
216 transitions[ 1 , 6 ] = 0 ;
217 transitions[ 1 , 7 ] = 0 ;
218 transitions[ 1 , 8 ] = 0 ;
219 transitions[ 1 , 9 ] = 0 ;
220 transitions[ 1 , 10 ] = 0 ;
221 transitions[ 2 , 0 ] = 0 ;
222 transitions[ 2 , 1 ] = 0 ;
223 transitions[ 2 , 2 ] = 0 ;
224 transitions[ 2 , 3 ] = 0 ;
225 transitions[ 2 , 4 ] = 0 ;
226 transitions[ 2 , 5 ] = 0 ;
227 transitions[ 2 , 6 ] = 0 ;
228 transitions[ 2 , 7 ] = 2 ;
229 transitions[ 2 , 8 ] = 2 ;
230 transitions[ 2 , 9 ] = 0 ;
231 transitions[ 2 , 10 ] = 0 ;
232 transitions[ 3 , 0 ] = 3 ;
233 transitions[ 3 , 1 ] = 0 ;
234 transitions[ 3 , 2 ] = 7 ;
235 transitions[ 3 , 3 ] = 3 ;
236 transitions[ 3 , 4 ] = 3 ;
237 transitions[ 3 , 5 ] = 3 ;
238 transitions[ 3 , 6 ] = 3 ;
239 transitions[ 3 , 7 ] = 3 ;
240 transitions[ 3 , 8 ] = 3 ;
241 transitions[ 3 , 9 ] = 4 ;
242 transitions[ 3 , 10 ] = 0 ;
243 transitions[ 4 , 0 ] = 3 ;
244 transitions[ 4 , 1 ] = 0 ;
245 transitions[ 4 , 2 ] = 3 ;
246 transitions[ 4 , 3 ] = 3 ;
247 transitions[ 4 , 4 ] = 3 ;
248 transitions[ 4 , 5 ] = 3 ;
249 transitions[ 4 , 6 ] = 3 ;
250 transitions[ 4 , 7 ] = 3 ;
251 transitions[ 4 , 8 ] = 3 ;
252 transitions[ 4 , 9 ] = 3 ;
253 transitions[ 4 , 10 ] = 0 ;
254 transitions[ 5 , 0 ] = 5 ;
255 transitions[ 5 , 1 ] = 0 ;
256 transitions[ 5 , 2 ] = 5 ;
257 transitions[ 5 , 3 ] = 5 ;
258 transitions[ 5 , 4 ] = 7 ;
259 transitions[ 5 , 5 ] = 5 ;
260 transitions[ 5 , 6 ] = 5 ;
261 transitions[ 5 , 7 ] = 5 ;
262 transitions[ 5 , 8 ] = 5 ;
263 transitions[ 5 , 9 ] = 6 ;
264 transitions[ 5 , 10 ] = 0 ;
265 transitions[ 6 , 0 ] = 5 ;
266 transitions[ 6 , 1 ] = 0 ;
267 transitions[ 6 , 2 ] = 5 ;
268 transitions[ 6 , 3 ] = 5 ;
269 transitions[ 6 , 4 ] = 5 ;
270 transitions[ 6 , 5 ] = 5 ;
271 transitions[ 6 , 6 ] = 5 ;
272 transitions[ 6 , 7 ] = 5 ;
273 transitions[ 6 , 8 ] = 5 ;
274 transitions[ 6 , 9 ] = 5 ;
275 transitions[ 6 , 10 ] = 0 ;
276 transitions[ 7 , 0 ] = 0 ;
277 transitions[ 7 , 1 ] = 0 ;
278 transitions[ 7 , 2 ] = 0 ;
279 transitions[ 7 , 3 ] = 0 ;
280 transitions[ 7 , 4 ] = 0 ;
281 transitions[ 7 , 5 ] = 0 ;
282 transitions[ 7 , 6 ] = 0 ;
283 transitions[ 7 , 7 ] = 0 ;
284 transitions[ 7 , 8 ] = 0 ;
285 transitions[ 7 , 9 ] = 0 ;
286 transitions[ 7 , 10 ] = 0 ;
287 transitions[ 8 , 0 ] = 1 ;
288 transitions[ 8 , 1 ] = 1 ;
289 transitions[ 8 , 2 ] = 1 ;
290 transitions[ 8 , 3 ] = 1 ;
291 transitions[ 8 , 4 ] = 1 ;
292 transitions[ 8 , 5 ] = 10 ;
293 transitions[ 8 , 6 ] = 9 ;
294 transitions[ 8 , 7 ] = 1 ;
295 transitions[ 8 , 8 ] = 1 ;
296 transitions[ 8 , 9 ] = 1 ;
297 transitions[ 8 , 10 ] = 1 ;
298 transitions[ 9 , 0 ] = 9 ;
299 transitions[ 9 , 1 ] = 0 ;
300 transitions[ 9 , 2 ] = 9 ;
301 transitions[ 9 , 3 ] = 9 ;
302 transitions[ 9 , 4 ] = 9 ;
303 transitions[ 9 , 5 ] = 9 ;
304 transitions[ 9 , 6 ] = 9 ;
305 transitions[ 9 , 7 ] = 9 ;
306 transitions[ 9 , 8 ] = 9 ;
307 transitions[ 9 , 9 ] = 9 ;
308 transitions[ 9 , 10 ] = 0 ;
309 transitions[ 10 , 0 ] = 10 ;
310 transitions[ 10 , 1 ] = 10 ;
311 transitions[ 10 , 2 ] = 10 ;
312 transitions[ 10 , 3 ] = 10 ;
313 transitions[ 10 , 4 ] = 10 ;
314 transitions[ 10 , 5 ] = 11 ;
315 transitions[ 10 , 6 ] = 0 ;
316 transitions[ 10 , 7 ] = 10 ;
317 transitions[ 10 , 8 ] = 10 ;
318 transitions[ 10 , 9 ] = 10 ;
319 transitions[ 10 , 10 ] = 0 ;
320 transitions[ 11 , 0 ] = 10 ;
321 transitions[ 11 , 1 ] = 10 ;
322 transitions[ 11 , 2 ] = 10 ;
323 transitions[ 11 , 3 ] = 10 ;
324 transitions[ 11 , 4 ] = 10 ;
325 transitions[ 11 , 5 ] = 10 ;
326 transitions[ 11 , 6 ] = 12 ;
327 transitions[ 11 , 7 ] = 10 ;
328 transitions[ 11 , 8 ] = 10 ;
329 transitions[ 11 , 9 ] = 10 ;
330 transitions[ 11 , 10 ] = 0 ;
331 transitions[ 12 , 0 ] = 0 ;
332 transitions[ 12 , 1 ] = 0 ;
333 transitions[ 12 , 2 ] = 0 ;
334 transitions[ 12 , 3 ] = 0 ;
335 transitions[ 12 , 4 ] = 0 ;
336 transitions[ 12 , 5 ] = 0 ;
337 transitions[ 12 , 6 ] = 0 ;
338 transitions[ 12 , 7 ] = 0 ;
339 transitions[ 12 , 8 ] = 0 ;
340 transitions[ 12 , 9 ] = 0 ;
341 transitions[ 12 , 10 ] = 0 ;
342 }
343 }
344 }
345
这是一个典型的状态机，里面定义了所有状态、颜色和对外可见的颜色标号。这里使用partial class是因为颜色是要你自己填写的，因此你可以看见我在代码的一开始注释掉了几行，所以他们就会出现在CSharpColorizer.Configuration.cs里：
1
using
System;
2 using System.Collections.Generic;
3 using System.Linq;
4 using System.Text;
5 using CodeBoxControl;
6 using System.Drawing;
7
8 namespace CodeForm
9 {
10 partial class CSharpColorizer
11 {
12 public const int BreakPointColorId = 0 ;
13 public const int BlockPointColorId = 1 ;
14 public const int NormalColorId = 2 ;
15
16 private readonly Color HighlightColor = Color.FromArgb( 173 , 214 , 255 );
17 private readonly Color NormalColor = Color.FromArgb( 0 , 0 , 0 );
18 private readonly Color IdColor = Color.FromArgb( 0 , 0 , 255 );
19 private readonly Color StringColor = Color.FromArgb( 163 , 21 , 21 );
20 private readonly Color CommentColor = Color.FromArgb( 0 , 128 , 0 );
21
22 private readonly Color BreakPointColor = Color.FromArgb( 255 , 255 , 255 );
23 private readonly Color BreakPointHighlightColor = Color.FromArgb( 123 , 119 , 166 );
24 private readonly Color BlockPointColor = Color.Gray;
25
26 private void CreateAdditionalColors()
27 {
28 this .colorItems[BreakPointColorId] = new TextEditorColorItem()
29 {
30 Text = BreakPointColor,
31 HighlightText = BreakPointColor,
32 Highlight = BreakPointHighlightColor
33 };
34 this .colorItems[BlockPointColorId] = new TextEditorColorItem()
35 {
36 Text = BlockPointColor,
37 HighlightText = BlockPointColor,
38 Highlight = HighlightColor
39 };
40 }
41
42 private bool IsValidId( string token)
43 {
44 return token[ 0 ] == ' # ' || Array.BinarySearch(keywords, token) >= 0 ;
45 }
46
47 private static string [] keywords = {
48 " abstract " ,
49 " as " ,
50 " base " ,
51 " bool " ,
52 " break " ,
53 " byte " ,
54 " case " ,
55 " catch " ,
56 " char " ,
57 " checked " ,
58 " class " ,
59 " const " ,
60 " continue " ,
61 " decimal " ,
62 " default " ,
63 " delegate " ,
64 " do " ,
65 " double " ,
66 " else " ,
67 " enum " ,
68 " event " ,
69 " explicit " ,
70 " extern " ,
71 " false " ,
72 " finally " ,
73 " fixed " ,
74 " float " ,
75 " for " ,
76 " foreach " ,
77 " goto " ,
78 " if " ,
79 " implicit " ,
80 " in " ,
81 " int " ,
82 " interface " ,
83 " internal " ,
84 " is " ,
85 " lock " ,
86 " long " ,
87 " namespace " ,
88 " new " ,
89 " null " ,
90 " object " ,
91 " operator " ,
92 " out " ,
93 " override " ,
94 " params " ,
95 " private " ,
96 " protected " ,
97 " public " ,
98 " readonly " ,
99 " ref " ,
100 " return " ,
101 " sbyte " ,
102 " sealed " ,
103 " short " ,
104 " sizeof " ,
105 " stackalloc " ,
106 " static " ,
107 " string " ,
108 " struct " ,
109 " switch " ,
110 " this " ,
111 " throw " ,
112 " true " ,
113 " try " ,
114 " typeof " ,
115 " unit " ,
116 " ulong " ,
117 " unchecked " ,
118 " unsafe " ,
119 " ushort " ,
120 " using " ,
121 " virtual " ,
122 " void " ,
123 " volatile " ,
124 " while "
125 };
126 }
127 }
128
2 using System.Collections.Generic;
3 using System.Linq;
4 using System.Text;
5 using CodeBoxControl;
6 using System.Drawing;
7
8 namespace CodeForm
9 {
10 partial class CSharpColorizer
11 {
12 public const int BreakPointColorId = 0 ;
13 public const int BlockPointColorId = 1 ;
14 public const int NormalColorId = 2 ;
15
16 private readonly Color HighlightColor = Color.FromArgb( 173 , 214 , 255 );
17 private readonly Color NormalColor = Color.FromArgb( 0 , 0 , 0 );
18 private readonly Color IdColor = Color.FromArgb( 0 , 0 , 255 );
19 private readonly Color StringColor = Color.FromArgb( 163 , 21 , 21 );
20 private readonly Color CommentColor = Color.FromArgb( 0 , 128 , 0 );
21
22 private readonly Color BreakPointColor = Color.FromArgb( 255 , 255 , 255 );
23 private readonly Color BreakPointHighlightColor = Color.FromArgb( 123 , 119 , 166 );
24 private readonly Color BlockPointColor = Color.Gray;
25
26 private void CreateAdditionalColors()
27 {
28 this .colorItems[BreakPointColorId] = new TextEditorColorItem()
29 {
30 Text = BreakPointColor,
31 HighlightText = BreakPointColor,
32 Highlight = BreakPointHighlightColor
33 };
34 this .colorItems[BlockPointColorId] = new TextEditorColorItem()
35 {
36 Text = BlockPointColor,
37 HighlightText = BlockPointColor,
38 Highlight = HighlightColor
39 };
40 }
41
42 private bool IsValidId( string token)
43 {
44 return token[ 0 ] == ' # ' || Array.BinarySearch(keywords, token) >= 0 ;
45 }
46
47 private static string [] keywords = {
48 " abstract " ,
49 " as " ,
50 " base " ,
51 " bool " ,
52 " break " ,
53 " byte " ,
54 " case " ,
55 " catch " ,
56 " char " ,
57 " checked " ,
58 " class " ,
59 " const " ,
60 " continue " ,
61 " decimal " ,
62 " default " ,
63 " delegate " ,
64 " do " ,
65 " double " ,
66 " else " ,
67 " enum " ,
68 " event " ,
69 " explicit " ,
70 " extern " ,
71 " false " ,
72 " finally " ,
73 " fixed " ,
74 " float " ,
75 " for " ,
76 " foreach " ,
77 " goto " ,
78 " if " ,
79 " implicit " ,
80 " in " ,
81 " int " ,
82 " interface " ,
83 " internal " ,
84 " is " ,
85 " lock " ,
86 " long " ,
87 " namespace " ,
88 " new " ,
89 " null " ,
90 " object " ,
91 " operator " ,
92 " out " ,
93 " override " ,
94 " params " ,
95 " private " ,
96 " protected " ,
97 " public " ,
98 " readonly " ,
99 " ref " ,
100 " return " ,
101 " sbyte " ,
102 " sealed " ,
103 " short " ,
104 " sizeof " ,
105 " stackalloc " ,
106 " static " ,
107 " string " ,
108 " struct " ,
109 " switch " ,
110 " this " ,
111 " throw " ,
112 " true " ,
113 " try " ,
114 " typeof " ,
115 " unit " ,
116 " ulong " ,
117 " unchecked " ,
118 " unsafe " ,
119 " ushort " ,
120 " using " ,
121 " virtual " ,
122 " void " ,
123 " volatile " ,
124 " while "
125 };
126 }
127 }
128
这个Configuration做了三件事情。第一、定义了额外的颜色。在这里我们修改了NormalColorId，这是系统颜色的第一个颜色序号。我们只需要修改了它，然后把自己的颜色加在它前面就行了。第二件事情是定义了什么是Id。我们在Id状态里打了个星号，那么生成的代码就会要求我们实现一个IsValidId函数。第三件事情就是我们指定了所有记号的真正的颜色。
为什么要做成partial class呢？我们可以很容易看出来，每一次生成代码的时候，我们只需要修改namespace和类名以及注释掉NormalColorId和所有颜色的声明，就可以让我们的自定义部分得到保留。这无疑很方便我们对着色器进行修改。只需要修改一下状态机，生成一份代码，再做一点很小的改动就行了。
最重要的是，这个着色器的性能跟 手写的基本一样优秀，因此从现在开始，我们开发一个上下文无关的着色器控件就基本不需要写代码了，只要是用Vczh Library++ 3.0实验库里面的TextEditorControl，再用这个TokenizerBuilder画个状态机生成个着色器的代码就搞定了，哇哈哈。下面要做的就是增强TokenizerBuilder，从状态机生成词法分析器了，然后就可以继续智能提示的实验了。
