Silverlight专题（8）-布局介绍

问题：

大家应该看过不少Silverlight的网站

肯定有时候有时候会很纳闷自己做得网页为什么那么难看

而网络上的一些范例那么好看

事实上就是布局的功劳（当然配色也是很重要的）

正如带兵打仗，不会排兵布阵，有再好的兵也枉然

设计：

Silverlight为咱们的排兵布阵提供了三个神兵利器Grid,StackPanel和Canvas

下面我分别对这三种布局控件做下介绍

Grid：一个有点类似Table（表格）的控件

如下所示，我将Grid分成了三行两列，行的高度以及列的控件如代码所示

你可以通过给放置在Grid的控件设置Grid.Row以及Grid.Column来设定该控件该放在哪一行哪一列（默认值都为0）

此外还可以通过设定Grid.RowSpan,Grid.ColumnSpan来设定控件占据几行几列（默认值都为1）

范例如下（模拟登陆页面）：

1  < Grid >
2      < Grid.RowDefinitions >
3          < RowDefinition Height = " Auto " />
4          < RowDefinition Height = " Auto " />
5          < RowDefinition Height = " Auto " />
6      </ Grid.RowDefinitions >
7      < Grid.ColumnDefinitions >
8          < ColumnDefinition Width = " Auto " />
9          < ColumnDefinition Width = " Auto " />
10      </ Grid.ColumnDefinitions >
11
12      < TextBlock Foreground = " #ED3798 " Text = " User Name: " HorizontalAlignment = " Right " VerticalAlignment = " Center " Margin = " 5 " FontSize = " 18 " />
13      < TextBox Grid.Column = " 1 " Margin = " 2,5 " Width = " 200 " />
14      < TextBlock Foreground = " #ED3798 " Text = " Password: " Margin = " 5 " Grid.Row = " 1 " HorizontalAlignment = " Right " VerticalAlignment = " Center " FontSize = " 18 " />
15      < TextBox Grid.Row = " 1 " Grid.Column = " 1 " Margin = " 2,5 " Width = " 200 " />
16      < Button Content = " Submit " FontSize = " 18 " Grid.Row = " 2 " Grid.ColumnSpan = " 2 " HorizontalAlignment = " Center " VerticalAlignment = " Top " Margin = " 0,5 " Padding = " 4,2 " />
17  </ Grid >

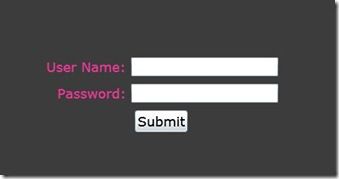

运行结果如下：

StackPanel：以水平或者垂直方向依次排列放在里面的控件（通过Orientation这个属性来决定，Horizontal为水平排列，Vertical为垂直排列-默认模式）

如下所示为水平方向放置：



1  < StackPanel Orientation = " Horizontal " >
2      < Image Width = " 80 " Source = " Image/blue.jpg " Margin = " 2,0 " />
3      < Image Width = " 80 " Source = " Image/red.jpg " Margin = " 2,0 " />
4      < Image Width = " 80 " Source = " Image/green.jpg " Margin = " 2,0 " />
5      < Image Width = " 80 " Source = " Image/orange.jpg " Margin = " 2,0 " />
6  </ StackPanel >

运行结果如下：

最后一种布局工具是Canvas：一种通过绝对坐标来定位控件放置位置的布局控件

其使用两个属性Canvas.Left（离左边多远，为double型数据）和Canvas.Top（离顶端多远，为double型数据）来定位放置在Canvas中的控件的绝对位置

范例如下：

1  < Canvas >
2      < Rectangle Fill = " Blue " Canvas.Left = " 20 " Canvas.Top = " 20 " Width = " 80 " Height = " 80 " />
3      < Rectangle Fill = " Red " Canvas.Left = " 110 " Canvas.Top = " 20 " Width = " 80 " Height = " 80 " />
4      < Rectangle Fill = " Green " Canvas.Left = " 200 " Canvas.Top = " 20 " Width = " 80 " Height = " 80 " />
5      < Rectangle Fill = " Orange " Canvas.Left = " 290 " Canvas.Top = " 20 " Width = " 80 " Height = " 80 " />
6  </ Canvas >

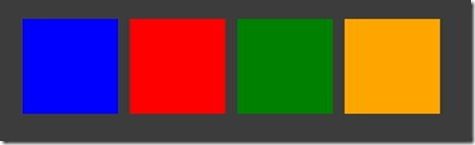

运行结果如下：

最后再介绍下Border控件

这个控件在布局的时候经常会用到

特别是它的圆角功能，屡试不爽^_^

如QQ TM版本的登陆界面的圆角（CornerRadius属性）就可以用Silverlight很快实现

大致的模拟下上面部分如下：

1  < Border Width = " 180 " Height = " 600 " CornerRadius = " 8,8,8,15 " Margin = " 10 " >
2      < Border.Background >
3          < LinearGradientBrush StartPoint = " 0.5,0 " EndPoint = " 0.5,1 " >
4              < GradientStop Offset = " 0.05 " Color = " #73CFFF " ></ GradientStop >
5              < GradientStop Offset = " 0.05 " Color = " #D7EDFF " />
6              < GradientStop Offset = " 1 " Color = " #D7EDFF " />
7          </ LinearGradientBrush >
8      </ Border.Background >
9      < Grid >
10          < Grid.RowDefinitions >
11              < RowDefinition Height = " 30 " />
12              < RowDefinition />
13          </ Grid.RowDefinitions >
14
15          < Grid Margin = " 5,0 " >
16              < TextBlock Text = " QQ 2009 Preview " Foreground = " White " VerticalAlignment = " Center " />
17              < StackPanel HorizontalAlignment = " Right " VerticalAlignment = " Top " Orientation = " Horizontal " >
18                  < Image Width = " 20 " Source = " Icons/2.png " />
19                  < Image Width = " 20 " Source = " Icons/1.png " />
20                  < Image Width = " 20 " Source = " Icons/3.png " />
21              </ StackPanel >
22          </ Grid >
23      </ Grid >
24  </ Border >

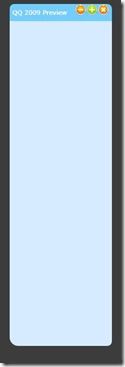

运行结果如图（图标没有严格按照qq自己的图标，大家见谅，毕竟我不是美工，呵呵）：

如何布局谋篇大家还是需要在实际的项目中去学习和总结

我在这里只是粗略的介绍下，希望对大家有所帮助
