JAVA入门----五子棋人机对战游戏

1.游戏设计思路

最初期的时候刚刚学完画图板的制作，老师让我们做一个五子棋游戏，是人人对战的那种，点击界面，实现绘棋。这很简单，给界面添加监听，点击鼠标，绘制棋子。后来，做到人机对战，就需要给计算机添加一定的算法，让计算机知道在什么地方下棋最有利。我的算法是，遍历整个棋盘，在每一个空位上，进行横、竖、左斜、右斜方向上黑棋和白棋的判断，再根据情况给出一定的权值，权值最高处就是电脑要下棋的交叉点。附件里面有完整的工程，有兴趣的朋友可以下载参考，欢迎交流讨论。

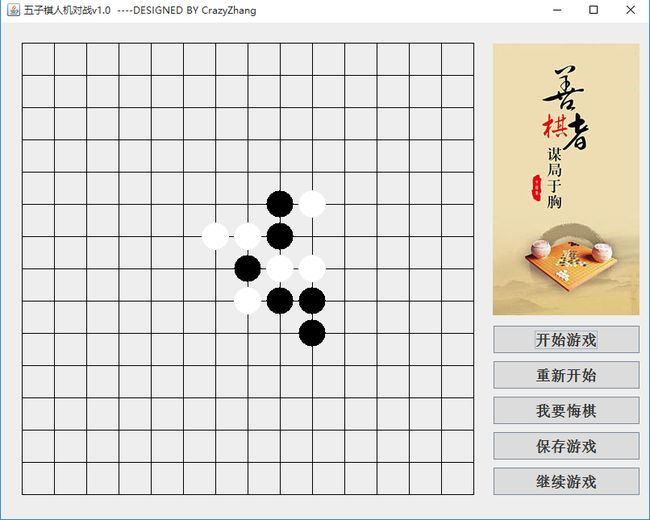

2.游戏主界面



3.具体实现

主界面类

package wuziqi;

import java.awt.Color;
import java.awt.Font;
import java.awt.Graphics;
import javax.swing.ImageIcon;
import javax.swing.JButton;
import javax.swing.JFrame;
import javax.swing.JLabel;
import javax.swing.JPanel;

public class mainUI extends JFrame {
	public Listener d = new Listener();
	private int array[][] = new int[Config.ROWS][Config.COLUMNS];//用来存储棋盘上上所有交叉点的情况，0代表没有棋子，1代表该交叉点上是黑棋，-1代表该交叉点上是白棋

	public static void main(String[] args) {
		mainUI wzq = new mainUI();//主界面对象
		wzq.ininUI();//初始化
	}

	public void ininUI() {
		this.setLayout(null);//设为绝对布局

		ImageIcon im = new ImageIcon(this.getClass().getResource("img/bg2.jpg"));//右上角的标志图片
		JLabel jla = new JLabel(im);
		jla.setBounds(610, 4, 182, 380);//位置，大小
		this.add(jla);

		Color c = new Color(238, 238, 238);
		JPanel jp = new JPanel();
		jp.setBackground(c);//背景颜色
		jp.setBounds(595, 376, 200, 240);
		this.add(jp);



		//添加按钮区
		String[] str = { "开始游戏", "重新开始", "我要悔棋", "保存游戏", "继续游戏" };
		for (int i = 0; i < str.length; i++) {
			Color b = new Color(220, 220, 220);
			JButton jb = new JButton(str[i]);
			jb.addActionListener(d);
			jb.setBackground(b);
			jb.setFont(new Font("宋体", Font.BOLD, 18));
			jb.setBounds(16, 0 + i * 44, 181, 34);

			jp.setLayout(null);
			jp.add(jb);
		}


		//标题，大小，位置，关闭时退出
		this.setTitle("五子棋人机对战v1.0  ----DESIGNED BY CrazyZhang");
		this.setSize(820, 655);
		this.setDefaultCloseOperation(3);
		this.setLocationRelativeTo(null);
		this.setVisible(true);

		Graphics g = this.getGraphics();//获取画笔对象
		this.addMouseListener(d);//添加监听器

		d.setArray(array);//set方法传值
		d.setG(g);
		d.setJp(this);
	}


/**
 * 重写父类的paint方法，在每一次界面重新出现的时候都要刷新一次，也就是线条，棋子重绘一次
 */
	public void paint(Graphics g) {
		super.paint(g);
		for (int i = 0; i < Config.ROWS; i++)//绘制横线
			g.drawLine(Config.X0, Config.Y0 + Config.SIZE * i, Config.X0 + 560,Config.Y0 + Config.SIZE * i);
		for (int j = 0; j < Config.COLUMNS; j++)//绘制纵线
			g.drawLine(Config.X0 + Config.SIZE * j, Config.Y0, Config.X0+ Config.SIZE * j, Config.Y0 + 560);
		//根据array记录的棋盘上的情况，重新绘制棋子
		for (int i = 0; i < Config.ROWS; i++) {
			for (int j = 0; j < Config.COLUMNS; j++) {
				if (array[i][j] == 1) {
					g.setColor(Color.BLACK);
					g.fillOval(Config.SIZE * i + Config.X0 - Config.CHESS_SIZE/ 2, Config.SIZE * j + Config.Y0- Config.CHESS_SIZE / 2, Config.CHESS_SIZE,Config.CHESS_SIZE);
				} else if (array[i][j] == -1) {
					g.setColor(Color.WHITE);
					g.fillOval(Config.SIZE * i + Config.X0 - Config.CHESS_SIZE/ 2, Config.SIZE * j + Config.Y0- Config.CHESS_SIZE / 2, Config.CHESS_SIZE,Config.CHESS_SIZE);
				}
			}
		}
	}

}

 监听器类

package wuziqi;

import java.awt.Color;
import java.awt.Graphics;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.awt.event.MouseEvent;
import java.awt.event.MouseListener;
import java.io.BufferedReader;
import java.io.BufferedWriter;
import java.io.FileNotFoundException;
import java.io.FileReader;
import java.io.FileWriter;
import java.io.IOException;
import javax.swing.JOptionPane;

public class Listener implements MouseListener, ActionListener {
	public int flag;
	private int t[][] = new int[Config.ROWS][Config.COLUMNS];
	private int p[][] = new int[Config.ROWS][Config.COLUMNS];
	private int HX[] = new int[Config.ROWS * Config.COLUMNS];
	private int HY[] = new int[Config.ROWS * Config.COLUMNS];
	public Chess e;
	public mainUI jp;
	private int array[][];
	private Graphics g;
	private int q = 0, w = 0, d = 0, f = 0, v = 0, h = 0, x1, y1, x2, y2, c, r,
			count = 0;

	public void setChess(Chess e) {
		this.e = e;
	}

	public void setG(Graphics g) {
		this.g = g;
	}

	public void setArray(int[][] array) {
		this.array = array;
	}

	public void setJp(mainUI jp) {
		this.jp = jp;
	}

	@Override
	public void mouseClicked(MouseEvent e) {
	}

	/**
	 * 记录该空格左右两边共有多少颗连续的棋子颜色一样，判断输赢时调用
	 *
	 * @param c
	 * @param r
	 * @return
	 */
	public int win1(int c, int r) {
		int flag = 0;
		for (int i = r + 1; i < array.length; i++) {
			if (array[c][r] == array[c][i]) {
				flag++;
			} else
				break;
		}
		for (int j = r; j >= 0; j--) {
			if (array[c][r] == array[c][j]) {
				flag++;
			} else
				break;
		}
		return flag;
	}

	/**
	 * 记录改空格上下两边共有多少颗连续的棋子颜色一样，判断输赢时调用
	 *
	 * @param c
	 * @param r
	 * @return
	 */
	public int win2(int c, int r) {
		int flag = 0;
		for (int i = c + 1; i < array.length; i++) {
			if (array[c][r] == array[i][r]) {
				flag++;
			} else
				break;
		}
		for (int j = c; j >= 0; j--) {
			if (array[c][r] == array[j][r]) {
				flag++;
			} else
				break;
		}

		return flag;
	}

	/**
	 * 记录改空格左斜方向上两边共有多少颗连续的棋子颜色一样，判断输赢时调用
	 *
	 * @param c
	 * @param r
	 * @return
	 */
	public int win3(int c, int r) {
		int flag = 0;
		for (int i = c + 1, j = r + 1; i < array.length && j < array.length; i++, j++) {
			if (array[c][r] == array[i][j]) {
				flag++;
			} else
				break;
		}
		for (int i = c, j = r; j >= 0 && i >= 0; i--, j--) {
			if (array[c][r] == array[i][j]) {
				flag++;
			} else
				break;
		}
		return flag;
	}

	/**
	 * 记录改空格右斜方向上左右两边共有多少颗连续的棋子颜色一样，判断输赢时调用
	 *
	 * @param c
	 * @param r
	 * @return
	 */
	public int win4(int c, int r) {
		int flag = 0;
		for (int i = c, j = r; i >= 0 && j < array.length; i--, j++) {
			if (array[c][r] == array[i][j]) {
				flag++;
			} else
				break;
		}
		for (int i = c, j = r; i < array.length && j >= 0; i++, j--) {
			if (array[c][r] == array[i][j]) {
				flag++;
			} else
				break;
		}
		return flag;
	}

	public void mousePressed(MouseEvent e) {
	}

	/**
	 * 核心算法区，玩家点击鼠标，获取玩家点击的坐标，计算出交叉点所在，然后再该交叉点绘制黑棋，array记录情况
	 * 轮到白子下棋，计算机遍历棋盘，找到最有利的地方下棋，array记录情况
	 */
	public void mouseReleased(MouseEvent e) {
		x1 = e.getX();// 获取当前点击的坐标
		y1 = e.getY();
		int c = (x1 - Config.X0 + Config.SIZE / 2) / Config.SIZE;// 得到行数
		int r = (y1 - Config.Y0 + Config.SIZE / 2) / Config.SIZE;// 列数
		x1 = Config.X0 + Config.SIZE * c - Config.CHESS_SIZE / 2;// 得到交叉点坐标
		y1 = Config.Y0 + Config.SIZE * r - Config.CHESS_SIZE / 2;
		if (flag == 1 || flag == -1) {
			if (array[c][r] == 0) {
				flag = 1;// flag初始化
				HX[count] = c;
				HY[count] = r;
				count++;
				g.setColor(Color.BLACK);// 绘制黑棋
				g.fillOval(x1, y1, Config.CHESS_SIZE, Config.CHESS_SIZE);
				array[c][r] = flag;// array记录情况
				flag = -1;// flag变换值，现在轮到白子下棋
				bestchoose();
			}
		}

		if (win1(c, r) >= 5 || win2(c, r) >= 5 || win3(c, r) >= 5
				|| win4(c, r) >= 6) {
			if (array[c][r] == 1) {
				JOptionPane.showMessageDialog(null, "黑子赢");
			}

			// 游戏结束之后，遍历棋盘，没下棋的交叉点全部另为2，不能再下棋
			for (int i = 0; i < Config.ROWS; i++)
				for (int j = 0; j < Config.COLUMNS; j++) {
					if (array[i][j] == 0)
						array[i][j] = 2;
				}
		}
	}

	/**
	 * 记录该空格左右两边共有多少颗连续的黑棋
	 * @param x
	 * @param y
	 * @return  根据情况左右黑棋的情况和空格的情况，返回一个权值
	 */
	public int bCountRow(int x, int y) {
		int cnt = 0;
		int flag = 0;
		for (int i = x + 1; i < array.length; i++) {
			if (array[i][y] == 1)
				cnt++;
			else if (array[i][y] == 0) {
				flag++;
				break;
			} else
				break;
		}
		for (int i = x - 1; i >= 0; i--) {
			if (array[i][y] == 1)
				cnt++;
			else if (array[i][y] == 0) {
				flag++;
				break;
			} else
				break;
		}
		return bCheseeScore(cnt, flag);
	}


	/**
	 * 记录该空格上下两边共有多少颗连续的黑棋
	 * @param x
	 * @param y
	 * @return  根据情况左右黑棋的情况和空格的情况，返回一个权值
	 */
	public int bCountColumn(int x, int y) {
		int cnt = 0;
		int flag = 0;
		for (int j = y + 1; j < array.length; j++) {
			if (array[x][j] == 1)
				cnt++;
			else if (array[x][j] == 0) {
				flag++;
				break;
			} else
				break;
		}
		for (int j = y - 1; j >= 0; j--) {
			if (array[x][j] == 1)
				cnt++;
			else if (array[x][j] == 0) {
				flag++;
				break;
			} else
				break;
		}
		return bCheseeScore(cnt, flag);
	}


	/**
	 * 记录该空格右斜两边共有多少颗连续的黑棋
	 * @param x
	 * @param y
	 * @return  根据情况左右黑棋的情况和空格的情况，返回一个权值
	 */
	public int bCountRU(int x, int y) {
		int cnt = 0;
		int flag = 0;
		for (int i = x + 1, j = y - 1; i < array.length && j >= 0; i++, j--) {
			if (array[i][j] == 1)
				cnt++;
			else if (array[i][j] == 0) {
				flag++;
				break;
			} else
				break;
		}
		for (int i = x - 1, j = y + 1; i >= 0 && j < array.length; i--, j++) {
			if (array[i][j] == 1)
				cnt++;
			else if (array[i][j] == 0) {
				flag++;
				break;
			} else
				break;
		}
		return bCheseeScore(cnt, flag);
	}


	/**
	 * 记录该空左斜方向两边共有多少颗连续的黑棋
	 * @param x
	 * @param y
	 * @return  根据情况左右黑棋的情况和空格的情况，返回一个权值
	 */
	public int bCountLU(int x, int y) {
		int cnt = 0;
		int flag = 0;
		for (int i = x + 1, j = y + 1; i < array.length && j < array.length; i++, j++) {
			if (array[i][j] == 1)
				cnt++;
			else if (array[i][j] == 0) {
				flag++;
				break;
			} else
				break;
		}
		for (int i = x - 1, j = y - 1; i >= 0 && j >= 0; i--, j--) {
			if (array[i][j] == 1)
				cnt++;
			else if (array[i][j] == 0) {
				flag++;
				break;
			} else
				break;
		}
		return bCheseeScore(cnt, flag);
	}



	/**
	 * 记录该空格左右两边共有多少颗连续的白棋
	 * @param x
	 * @param y
	 * @return  根据情况左右白棋的情况和空格的情况，返回一个权值
	 */
	public int wCountRow(int x, int y) {
		int flag = 0;
		int cnt = 0;

		for (int i = x + 1; i < array.length; i++) {
			if (array[i][y] == -1)
				cnt++;
			else if (array[i][y] == 0) {
				flag++;
				break;
			} else
				break;
		}
		for (int i = x - 1; i >= 0; i--) {
			if (array[i][y] == -1)
				cnt++;
			else if (array[i][y] == 0) {
				flag++;
				break;
			} else
				break;
		}
		return wCheseeScore(cnt, flag);
	}



	/**
	 * 记录该空格上下两边共有多少颗连续的黑棋
	 * @param x
	 * @param y
	 * @return  根据情况左右白棋的情况和空格的情况，返回一个权值
	 */
	public int wCountColumn(int x, int y) {
		int cnt = 0;
		int flag = 0;
		for (int j = y + 1; j < array.length; j++) {
			if (array[x][j] == -1)
				cnt++;
			else if (array[x][j] == 0) {
				flag++;
				break;
			} else
				break;
		}
		for (int j = y - 1; j >= 0; j--) {
			if (array[x][j] == -1)
				cnt++;
			else if (array[x][j] == 0) {
				flag++;
				break;
			} else
				break;
		}
		return wCheseeScore(cnt, flag);
	}



	/**
	 * 记录该空格右斜两边共有多少颗连续的黑棋
	 * @param x
	 * @param y
	 * @return  根据情况左右白棋的情况和空格的情况，返回一个权值
	 */
	public int wCountRU(int x, int y) {
		int cnt = 0;
		int flag = 0;
		for (int i = x + 1, j = y - 1; i < array.length && j >= 0; i++, j--) {
			if (array[i][j] == -1)
				cnt++;
			else if (array[i][j] == 0) {
				flag++;
				break;
			} else
				break;
		}
		for (int i = x - 1, j = y + 1; i >= 0 && j < array.length; i--, j++) {
			if (array[i][j] == -1)
				cnt++;
			else if (array[i][j] == 0) {
				flag++;
				break;
			} else
				break;
		}
		return wCheseeScore(cnt, flag);
	}


	/**
	 * 记录该空格左斜两边共有多少颗连续的黑棋
	 * @param x
	 * @param y
	 * @return  根据情况左右白棋的情况和空格的情况，返回一个权值
	 */
	public int wCountLU(int x, int y) {
		int cnt = 0;
		int flag = 0;
		for (int i = x + 1, j = y + 1; i < array.length && j < array.length; i++, j++) {
			if (array[i][j] == -1)
				cnt++;
			else if (array[i][j] == 0) {
				flag++;
				break;
			} else
				break;
		}
		for (int i = x - 1, j = y - 1; i >= 0 && j >= 0; i--, j--) {
			if (array[i][j] == -1)
				cnt++;
			else if (array[i][j] == 0) {
				flag++;
				break;
			} else
				break;
		}
		return wCheseeScore(cnt, flag);
	}



	/**
	 * 根据黑棋相连的情况和空格数量，判断权值
	 * @param cnt
	 * @param flag
	 * @return
	 */
	public int bCheseeScore(int cnt, int flag) {
		int score = 0;
		if (cnt == 4 || cnt == 5 || cnt == 6 || cnt == 7 || cnt == 8) {// 第1,2,3级
			score = 900000;
		} else if (cnt == 3) {
			if (flag == 2) {
				score = 200000;
				System.out.println(flag);
			} else if (flag == 1) {
				score = 50000;
			} else {
				score = 500;
			}
		} else if (cnt == 2) {
			if (flag == 2) {
				score = 50000;
			} else if (flag == 1) {
				score = 20000;
			} else {
				score = 400;
			}

		} else if (cnt == 1) {
			if (flag == 2) {
				score = 15000;
			} else if (flag == 1) {
				score = 10000;
			} else {
				score = 300;
			}
		} else {
			score = 100;
		}
		return score;
	}


	/**
	 * 根据白棋相连的情况和空格数量，判断权值
	 * @param cnt
	 * @param flag
	 * @return
	 */
	public int wCheseeScore(int cnt, int flag) {
		int score = 0;
		if (cnt == 4 || cnt == 5 || cnt == 6 || cnt == 7 || cnt == 8) {// 第1,2,3级
			score = 1000000;
		} else if (cnt == 3) {
			if (flag == 2) {
				score = 210000;
			} else if (flag == 1) {
				score = 50000;
			} else {
				score = 500;
			}
		} else if (cnt == 2) {
			if (flag == 2) {
				score = 55000;
			} else if (flag == 1) {
				score = 20000;
			} else {
				score = 400;
			}

		} else if (cnt == 1) {
			if (flag == 2) {
				score = 15000;
			} else if (flag == 1) {
				score = 10000;
			} else {
				score = 300;
			}
		} else {
			score = 100;
		}
		return score;

	}



	/**
	 * 根据权值，选择攻和守的一方作为侧重点，
	 * 以攻、守中，较大者作为该交叉点的最终权值
	 * 在取得最高权值的交叉点下棋
	 */
	public void bestchoose() {
		t = new int[Config.ROWS][Config.COLUMNS];
		p = new int[Config.ROWS][Config.COLUMNS];
		q = 0;
		w = 0;
		d = 0;
		f = 0;
		v = 0;
		h = 0;
		for (int i = 0; i < Config.ROWS; i++)
			for (int j = 0; j < Config.COLUMNS; j++) {
				if (array[i][j] == 0) {
					t[i][j] = bCountRow(i, j) + bCountColumn(i, j)
							+ bCountRU(i, j) + bCountLU(i, j);
				}
			}
		for (int i = 0; i < Config.ROWS; i++)
			for (int j = 0; j < Config.COLUMNS; j++) {
				if (array[i][j] == 0) {
					p[i][j] = wCountRow(i, j) + wCountColumn(i, j)
							+ wCountRU(i, j) + wCountLU(i, j);
				}
			}
		for (int i = 0; i < Config.ROWS; i++)
			for (int j = 0; j < Config.COLUMNS; j++) {
				if (t[i][j] > q) {
					q = t[i][j];
					d = i;
					f = j;
				}
				if (p[i][j] > w) {
					w = p[i][j];
					v = i;
					h = j;
				}
			}
		if (q > w) {
			c = d;
			r = f;
		} else {
			c = v;
			r = h;
		}
		array[c][r] = flag;
		x1 = Config.X0 + Config.SIZE * c - Config.CHESS_SIZE / 2;
		y1 = Config.Y0 + Config.SIZE * r - Config.CHESS_SIZE / 2;
		g.setColor(Color.WHITE);
		g.fillOval(x1, y1, Config.CHESS_SIZE, Config.CHESS_SIZE);
		HX[count] = c;
		HY[count] = r;
		count++;
		flag = 1;

		if (win1(c, r) >= 5 || win2(c, r) >= 5 || win3(c, r) >= 5
				|| win4(c, r) >= 6) {
			JOptionPane.showMessageDialog(null, "白子赢");
			for (int i = 0; i < Config.ROWS; i++)
				for (int j = 0; j < Config.COLUMNS; j++) {
					if (array[i][j] == 0)
						array[i][j] = 2;
				}
		}
	}


	/**
	 * 按钮区
	 */
	public void actionPerformed(ActionEvent e) {
		String s = e.getActionCommand();
		if (s.equals("开始游戏")) {
			flag = 1;
			for (int i = 0; i < 15; i++) {
				for (int j = 0; j < 15; j++) {
					array[i][j] = 0;
				}
			}

		} else if (s.equals("重新开始")) {
			for (int i = 0; i < 15; i++) {
				for (int j = 0; j < 15; j++) {
					array[i][j] = 0;
				}
			}
			jp.repaint();

		} else if (s.equals("我要悔棋")) {
			this.huiqi();
		} else if (s.equals("保存游戏")) {
			try {
				this.save();
			} catch (IOException e1) {
				e1.printStackTrace();
			}
		} else if (s.equals("继续游戏")) {
			this.goon();
		}
	}

	public void huiqi() {
		for (int i = 0; i < Config.ROWS; i++)
			for (int j = 0; j < Config.COLUMNS; j++) {
				if (array[i][j] == 2)
					array[i][j] = 0;
			}
		if (count >= 0) {
			array[HX[count - 1]][HY[count - 1]] = 0;
			jp.repaint();
		}
		count--;
	}
/**
 * 游戏的保存，点击"保存游戏"时调用，将数组信息存到玩家电脑C盘目录下的text.text文件中
 * @throws IOException
 */
	public void save() throws IOException {
		int count = 0;
		int[] socket = new int[675];
		for (int i = 0; i < array.length; i++) {
			for (int j = 0; j < array[i].length; j++) {
				if (array[i][j] != 0) {
					int newflag = array[i][j];
					e = new Chess(i, j, newflag);
					socket[count] = e.x;
					count++;
					socket[count] = e.y;
					count++;
					socket[count] = e.newflag;
					count++;
				}
			}
		}
		String aryStr = aryToString(socket);// 转
		BufferedWriter bw = new BufferedWriter(new FileWriter("C:\\test.txt"));// 存
		try {
			bw.write(aryStr);
			bw.close();
		} catch (IOException e) {
			e.printStackTrace();
		}
	}


	/**
	 * 继续游戏，将C盘目录下text.text文件读取出来，转换成array的值，根据array绘制棋子
	 */
	public void goon() {
		int i = 0;
		int j = 0;
		int k = 0;
		try {
			BufferedReader br = new BufferedReader(new FileReader(
					"C:\\test.txt"));// 取
			String content = br.readLine();
			int[] newAry = strToArray(content.trim());
			for (int t = 0; t < newAry.length;) {
				i = newAry[t];
				t++;
				j = newAry[t];
				t++;
				k = newAry[t];
				t++;
				array[i][j] = k;
				rpaint(i, j, k);
				flag = 1;
				jp.repaint();
			}
		} catch (FileNotFoundException e) {
			e.printStackTrace();
		} catch (IOException e) {
			e.printStackTrace();
		}
	}

	public void rpaint(int x, int y, int newflag) {
		int xm = Config.X0 + Config.SIZE * x - Config.CHESS_SIZE / 2;
		int ym = Config.Y0 + Config.SIZE * y - Config.CHESS_SIZE / 2;
		if (newflag == 1) {
			g.setColor(Color.BLACK);
			g.fillOval(xm, ym, Config.CHESS_SIZE, Config.CHESS_SIZE);
			HX[count] = x;
			HY[count] = y;
			count++;
		} else if (newflag == -1) {
			g.setColor(Color.white);
			g.fillOval(xm, ym, Config.CHESS_SIZE, Config.CHESS_SIZE);
			HX[count] = x;
			HY[count] = y;
			count++;
		}
	}

	private static int[] strToArray(String str) {// 字符串转数组
		String[] strAry = str.split(",");
		int[] ary = new int[strAry.length];
		for (int i = 0; i < strAry.length; i++) {
			ary[i] = Integer.parseInt(strAry[i]);
		}
		return ary;
	}

	private static String aryToString(int[] ary) {// 数组转字符串
		StringBuilder sb = new StringBuilder();
		for (int i = 0; i < ary.length; i++) {
			sb.append(ary[i]).append(",");
		}
		sb.deleteCharAt(sb.length() - 1);
		return sb.toString();
	}

	@Override
	public void mouseEntered(MouseEvent e) {
	}

	@Override
	public void mouseExited(MouseEvent e) {
	}
}

 配置类

package wuziqi;

public interface Config {
	public static final int X0 = 34;// 表格左上角起点的x值
	public static final int Y0 = 56;// 表格左上角起点的y值
	public static final int ROWS = 15;// 棋盘的行数
	public static final int COLUMNS = 15;// 棋盘的列数
	public static int CHESS_SIZE = 34;// 棋子大小
	public static int SIZE = 40;// 单元格大小
}



棋子类

package wuziqi;

public class Chess {
	public int x;
	public int y;
	public int newflag;

	public Chess(int x, int y, int newflag) {
		super();
		this.x = x;
		this.y = y;
		this.newflag = newflag;
	}
}



 4.总结与期待

这个游戏很简单，适合初学者学习，帮助加深对面向对象编程的理解和方法的调用，类与类之间参数的传递的理解。附件里面有完整的工程，有兴趣的朋友可以下载参考，欢迎交流讨论。
