ActionScript 3的HTTPTunnel的实现

ActionScript 3是Adobe公司开发的用于编写Flash的脚本语言。Adobe新推出的Adobe Flex的Rich Internet Application开发平台同样支持Action Script。ActionScript编写的Flex Data Service提供了丰富的数据处理功能，也包括实现了通过建立HTTPChannel的数据实时更新功能，例如聊天室，股市行情等。本文将使用ActionScript 3.0编写HTTPTunnel Client取代Flex Data Service的HTTPChannel， 用开源的Java HTTPTunnel作为Server，实现数据实时更新。

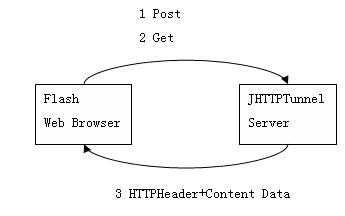

1 架构

<group id="_x0000_s1026" style="WIDTH: 252.1pt; HEIGHT: 161.95pt; mso-position-horizontal-relative: char; mso-position-vertical-relative: line" coordsize="4291,2776" coordorigin="2279,5367" editas="canvas"><lock aspectratio="t" v:ext="edit"></lock><shapetype id="_x0000_t75" stroked="f" filled="f" path="m@4@5l@4@11@9@11@9@5xe" o:preferrelative="t" o:spt="75" coordsize="21600,21600"><stroke joinstyle="miter"></stroke><formulas><f eqn="if lineDrawn pixelLineWidth 0"></f><f eqn="sum @0 1 0"></f><f eqn="sum 0 0 @1"></f><f eqn="prod @2 1 2"></f><f eqn="prod @3 21600 pixelWidth"></f><f eqn="prod @3 21600 pixelHeight"></f><f eqn="sum @0 0 1"></f><f eqn="prod @6 1 2"></f><f eqn="prod @7 21600 pixelWidth"></f><f eqn="sum @8 21600 0"></f><f eqn="prod @7 21600 pixelHeight"></f><f eqn="sum @10 21600 0"></f></formulas><path o:connecttype="rect" gradientshapeok="t" o:extrusionok="f"></path><lock aspectratio="t" v:ext="edit"></lock></shapetype><shape id="_x0000_s1027" style="LEFT: 2279px; WIDTH: 4291px; POSITION: absolute; TOP: 5367px; HEIGHT: 2776px" o:preferrelative="f" type="#_x0000_t75"><font size="3"><fill o:detectmouseclick="t"></fill><path o:connecttype="none" o:extrusionok="t"></path><lock v:ext="edit" text="t"></lock></font></shape><shapetype id="_x0000_t202" path="m,l,21600r21600,l21600,xe" o:spt="202" coordsize="21600,21600"><stroke joinstyle="miter"></stroke><path o:connecttype="rect" gradientshapeok="t"></path></shapetype><shape id="_x0000_s1028" style="LEFT: 2739px; WIDTH: 1225px; POSITION: absolute; TOP: 6446px; HEIGHT: 771px" type="#_x0000_t202"><textbox inset="5.85pt,.7pt,5.85pt,.7pt"><table cellspacing="0" cellpadding="0" width="100%"><tbody><tr> <td style="BORDER-RIGHT: #ece9d8; BORDER-TOP: #ece9d8; BORDER-LEFT: #ece9d8; BORDER-BOTTOM: #ece9d8; BACKGROUND-COLOR: transparent"> <div> <p class="MsoNormal" style="MARGIN: 0mm 0mm 0pt"><span lang="EN-US" style="FONT-FAMILY: SimSun; mso-fareast-language: ZH-CN"><font size="3">Flash<p></p></font></span></p> <p class="MsoNormal" style="MARGIN: 0mm 0mm 0pt"><span lang="EN-US" style="FONT-FAMILY: SimSun; mso-fareast-language: ZH-CN"><font size="3">Web Browser</font></span></p> </div> </td> </tr></tbody></table></textbox></shape><shape id="_x0000_s1029" style="LEFT: 5343px; WIDTH: 1227px; POSITION: absolute; TOP: 6446px; HEIGHT: 771px" type="#_x0000_t202"><textbox inset="5.85pt,.7pt,5.85pt,.7pt"><table cellspacing="0" cellpadding="0" width="100%"><tbody><tr> <td style="BORDER-RIGHT: #ece9d8; BORDER-TOP: #ece9d8; BORDER-LEFT: #ece9d8; BORDER-BOTTOM: #ece9d8; BACKGROUND-COLOR: transparent"> <div> <p class="MsoNormal" style="MARGIN: 0mm 0mm 0pt"><span lang="EN-US" style="FONT-FAMILY: SimSun; mso-fareast-language: ZH-CN"><font size="3">JHTTPTunnel <p></p></font></span></p> <p class="MsoNormal" style="MARGIN: 0mm 0mm 0pt"><span lang="EN-US" style="FONT-FAMILY: SimSun; mso-fareast-language: ZH-CN"><font size="3">Server<p></p></font></span></p> <p class="MsoNormal" style="MARGIN: 0mm 0mm 0pt"><span lang="EN-US"><p><font face="Century" size="3"></font></p></span></p> </div> </td> </tr></tbody></table></textbox></shape><shapetype id="_x0000_t38" filled="f" path="m,c@0,0@1,5400@1,10800@1,16200@2,21600,21600,21600e" o:spt="38" coordsize="21600,21600" o:oned="t"><formulas><f eqn="mid #0 0"></f><f eqn="val #0"></f><f eqn="mid #0 21600"></f></formulas><path o:connecttype="none" fillok="f" arrowok="t"></path><handles><h position="#0,center"></h></handles><lock v:ext="edit" shapetype="t"></lock></shapetype><shape id="_x0000_s1030" style="LEFT: 4653px; WIDTH: 1px; POSITION: absolute; TOP: 5145px; HEIGHT: 2604px; rotation: 270; flip: y" type="#_x0000_t38" adj="-7776000,-46412,63979200" o:connectortype="curved"><stroke endarrow="block"><font face="Century" size="3"></font></stroke></shape><shape id="_x0000_s1031" style="LEFT: 4653px; WIDTH: 1px; POSITION: absolute; TOP: 5916px; HEIGHT: 2604px; rotation: 90" type="#_x0000_t38" adj="7776000,-52765,-130075200" o:connectortype="curved"><stroke endarrow="block"><font face="Century" size="3"></font></stroke></shape><shape id="_x0000_s1032" style="LEFT: 3658px; WIDTH: 2604px; POSITION: absolute; TOP: 7680px; HEIGHT: 309px" stroked="f" filled="f" type="#_x0000_t202"><textbox inset="5.85pt,.7pt,5.85pt,.7pt"><table cellspacing="0" cellpadding="0" width="100%"><tbody><tr> <td style="BORDER-RIGHT: #ece9d8; BORDER-TOP: #ece9d8; BORDER-LEFT: #ece9d8; BORDER-BOTTOM: #ece9d8; BACKGROUND-COLOR: transparent"> <div> <p class="MsoNormal" style="MARGIN: 0mm 0mm 0pt"><span lang="EN-US" style="FONT-FAMILY: SimSun; mso-fareast-language: ZH-CN"><font size="3">3 HTTPHeader+Content Data</font></span></p> </div> </td> </tr></tbody></table></textbox></shape><shape id="_x0000_s1033" style="LEFT: 3964px; WIDTH: 1226px; POSITION: absolute; TOP: 5367px; HEIGHT: 617px" stroked="f" filled="f" type="#_x0000_t202"><textbox inset="5.85pt,.7pt,5.85pt,.7pt"><table cellspacing="0" cellpadding="0" width="100%"><tbody><tr> <td style="BORDER-RIGHT: #ece9d8; BORDER-TOP: #ece9d8; BORDER-LEFT: #ece9d8; BORDER-BOTTOM: #ece9d8; BACKGROUND-COLOR: transparent"> <div> <p class="MsoNormal" style="MARGIN: 0mm 0mm 0pt"><span lang="EN-US" style="FONT-FAMILY: SimSun; mso-fareast-language: ZH-CN"><font size="3">1 Post <p></p></font></span></p> <p class="MsoNormal" style="MARGIN: 0mm 0mm 0pt"><span lang="EN-US" style="FONT-FAMILY: SimSun; mso-fareast-language: ZH-CN"><font size="3">2 Get</font></span></p> </div> </td> </tr></tbody></table></textbox></shape><wrap type="none"></wrap><anchorlock></anchorlock></group>

1． Flash客户端连接HTTP Server并向HTTP Server发送Post命令。

2． Flash客户端连接HTTP Server并向HTTP Server发送Get命令。

3． HTTP Server向Flash不断发送遵循HTTP协议的数据，直到Flash客户端发送Close命令关闭连接。

4．Flash客户端解析接受到的数据并更新界面。

2．实现

2.1 客户端

MXML-类似于XML语言，用于部署Flash界面，可被Flex SDK编译为Flash文件。

<?xml version="1.0" encoding="utf-8"?>

<mx:Application xmlns:mx="http://www.adobe.com/2006/mxml" layout="absolute" width="620" height="341"

creationComplete="Refresh()">

<mx:Script>

<![CDATA[

import org.colimas.http.*;

import mx.collections.*;

[Bindable]

public var initDG:ArrayCollection;

var host:String="localhost";

var hport:int=8888;

var jhtc:HttpTunnelClient=new HttpTunnelClient(host, hport);

private var DGArray:Array = [

{ corp:'IBM', last:79.99},

{ corp:'MS', last:30.99}];

private function Refresh():void {

trace("start...");

Data1.text="Started";

Data2.text="Yes!";

jhtc.setInBound(new InTunnelSocket());

jhtc.setOutBound(new OutTunnelSocket());

initDG=new ArrayCollection(DGArray);

jhtc.connect();

jhtc.Register(initDG);

jhtc.close();

var myTimer:Timer=new Timer(300);

myTimer.addEventListener("timer", timerHandler);

myTimer.start();

}

public function timerHandler(event:TimerEvent):void {

initDG.refresh();

}

]]>

</mx:Script>

<mx:Text x="41" y="38" text="Text1" width="62" height="28" id="Data1"/>

<mx:Text x="124" y="38" text="Text2" width="62" height="28" id="Data2"/>

<mx:DataGrid x="39" y="86" width="542" editable="false" id="Stock" dataProvider="{initDG}">

<mx:columns>

<mx:DataGridColumn headerText="Corp." dataField="corp"/>

<mx:DataGridColumn headerText="Last" dataField="last"/>

</mx:columns>

</mx:DataGrid>

</mx:Application>

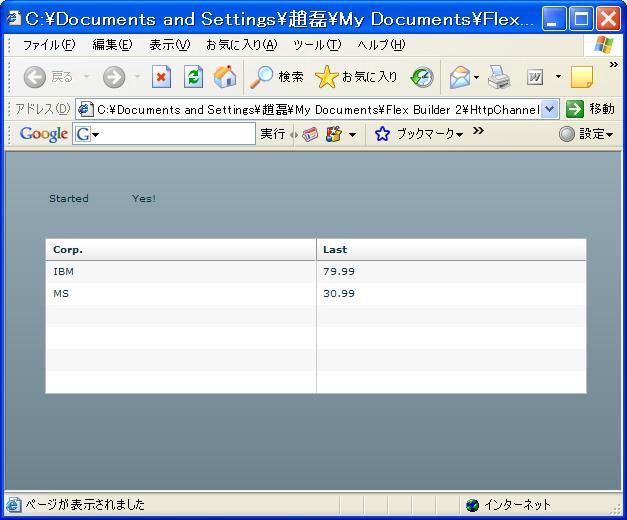

界面显示如下：

<shape id="_x0000_i1026" style="WIDTH: 4in; HEIGHT: 239.25pt" type="#_x0000_t75"><imagedata o:title="" src="file:///C:%5CDOCUME~1%5C%E8%B6%99%E7%A3%8A%5CLOCALS~1%5CTemp%5Cmsohtml1%5C01%5Cclip_image002.png"></imagedata></shape>

Refresh()函数实现数据刷新。org.colimas.http.HttpTunnelClient类用ActionScript语言编写，实现HTTPTunnel客户端，完成连接HTTPTunnel并接受数据任务。

org.colimas.http.HttpTunnelClient实现：

package org.colimas.http

{

 import flash.utils.ByteArray;

 import flash.errors.IOError;

 import mx.collections.ArrayCollection;

public class HttpTunnelClient extends HttpTunnel

 {

 static private var CONTENT_LENGTH:int=1024*10;

private var init:Boolean=false;

 private var closed:Boolean=false;

private var dest_host:String=null;

 private var dest_port:int=0;

 private var proxy:Proxy=null;

private var ib:InTunnel=null;

 private var ob:OutTunnel=null;

public function HttpTunnelClient( host:String, port:int){

 this.dest_host=host;

 this.dest_port=port;

 }

 /*传入用于界面显示的数据源*/

 public function Register(DGArray:ArrayCollection):void{

 this.ib.setData(DGArray);

 }

public function setProxy( host:String, port:int):void{

 this.proxy=new Proxy(host, port);

 }

public function connect():void{

if(ib==null){

 trace("InTunnel is not given");

 return;

 }

 ib.setHost(dest_host);

 ib.setPort(dest_port);

 ib.setProxy(proxy);

if(ob==null){

 trace("OutTunnel is not given");

 return;

 }

 ob.setHost(dest_host);

 ob.setPort(dest_port);

 ob.setProxy(proxy);

 ob.setContentLength(CONTENT_LENGTH);

getOutbound();

 getInbound();

 }

 /*数据发送OutTunnel类连接服务器端*/

 private function getOutbound():void{

 if(closed){

 trace("broken pipe");

 return;

 }

 ob.connect();

 }

 /*数据接受InTunnel连接服务器端*/

 private function getInbound():void{

 ib.connect();

 }

var buf_len:int=0;

 public function close():void{

 sendClose()

 ib.close()

 ob.close()

 closed=true;

 }

public function setInBound( ib:InTunnel):void { this.ib=ib; }

 public function setOutBound( ob:OutTunnel):void{ this.ob=ob; }

}

}

数据发送OutTunnel类的实现

package org.colimas.http

{

 import flash.net.Socket;

 import flash.utils.ByteArray;

 import flash.events.DataEvent;

 import flash.events.Event;

 import flash.events.ErrorEvent;

 import flash.events.IOErrorEvent;

 import flash.events.ProgressEvent;

public class OutTunnelSocket extends OutTunnel

 {

 static private var _rn:String="\r\n";

private var socket:Socket=null;

 private var request:String="/index.html?crap=1 HTTP/1.1";

public function OutTunnelSocket(){

 super();

}

 private function errorHandler(event:ErrorEvent):void

 {

 trace("[" + event.type + "] " + event.toString());

}

private function ioErrorHandler(event:IOErrorEvent):void

 {

 trace("[" + event.type + "] " + event.toString());

 }

 /*连接后发送POST请求*/

 private function connectHandler(event:Event):void {

 trace("Out[" + event.type + "] " + event.toString());

socket.writeUTF(request);

 socket.writeUTF(_rn);

 socket.writeUTF("Content-Length: "+getContentLength());

 socket.writeUTF(_rn);

 socket.writeUTF("Connection: close");

 socket.writeUTF(_rn);

 socket.writeUTF("Host: "+getHost()+":"+getPort());

 socket.writeUTF(_rn);

 socket.writeUTF(_rn);

 socket.flush();

 sendCount=getContentLength();

socket.writeByte(HttpTunnel.TUNNEL_OPEN);

 socket.writeByte(0);

 socket.writeByte(1);

 socket.writeByte(0);

 }

public override function connect():void{

 close();

 var host:String=getHost();

 var port:int=getPort();

 var p:Proxy=getProxy();

 if(p==null){

 socket=new Socket(host, port);

 request="POST "+request;

 }

 else{

 var phost:String=p.getHost();

 var pport:int=p.getPort();

 socket=new Socket(phost, pport);

 request="POST http://"+host+":"+port+request;

 }

 socket.addEventListener(Event.CONNECT, connectHandler);

 socket.addEventListener(ErrorEvent.ERROR, errorHandler);

 socket.addEventListener(IOErrorEvent.IO_ERROR, ioErrorHandler);

 }

 /*用于向Server发送命令*/

 public override function sendData(foo:ByteArray, s:int, l:int, flush:Boolean):void{

 if(l<=0) return;

 if(sendCount<=0){

 trace("1#");

 connect();

 </sp
