另類的Silverlight中文解法
另類的
Silverlight
中文解法
文
/
黃忠成
如你所知，由於字型的關係，
Silverlight
目前對於雙位元文字顯示可說是困難重重，大概可歸類出兩種解法，一種是下載字型到客戶端，一種是利用
Blend2
將文字變成圖形，下載字型目前有法律問題的隱憂，而且一個中文字型檔大小約
5MB
，仍嫌過大。在上次嘗試實作
DataBinding
功能後，心中就有一種想法，假如於
Server
端將文字轉成圖形後下載到客戶端，那麼因為不是直接下載字型，所以應無法律問題
(
這我不確定！
)
，也不會因下載整個字型檔而導致網頁開啟速度過慢，這樣是否就能讓前次的
Data Bindigns
例子支援中文的顯示呢？可惜前幾天因陪老婆考試，一直沒時間來實現心中的構想，這幾天終於有時間來實現這個架構了。基本上，實現這個架構有兩個問題必須先行解決，第一個問題是
Server
端如何將文字變成圖形？這不難，下列的程式便可辦到。
|
protected
void Page_Load(object sender, EventArgs e)
{
if (Request.QueryString["ID"] != null &&
Request.QueryString["ID"].Length > 0)
{
..................
}
else if (Request.QueryString["Transform"] != null)
{
int index;
string column;
ResolveParams(Request.QueryString["Transform"],
out
index, out column);
if (index != -1)
{
Employee data = GetData(index);
MemoryStream ms = ResolveTransform(data, column);
if (ms != null)
{
Response.Clear();
Response.BufferOutput = true;
Response.ContentType = "image/bmp";
Response.OutputStream.Write(ms.GetBuffer(), 0, (int)ms.Length);
ms.Dispose();
Response.Flush();
Response.End();
}
else
Response.End();
}
}
}
private void ResolveParams(string transformParams, out int index, out string column)
{
string[] p = Request.QueryString["Transform"].Split('*');
index = -1;
column = string.Empty;
if (p.Length == 2)
{
index = int.Parse(p[0]);
column = p[1];
}
}
private MemoryStream ResolveTransform(object data, string column)
{
PropertyInfo pi = data.GetType().GetProperty(column);
if (pi != null)
return GetDBCSJPEStream(pi.GetValue(data,null).ToString(),
new
Font("PMingLiU", 11,FontStyle.Bold), Color.Black, Color.White, 280,24);
return null;
}
private MemoryStream GetDBCSJPEStream(string str, Font font, Color foreColor,
Color
background, int width, int height)
{
Bitmap bmp = new Bitmap(width, height);
Graphics g = Graphics.FromImage(bmp);
Brush bFore = new SolidBrush(foreColor);
Brush bBack = new SolidBrush(background);
g.Clear(Color.Transparent);
g.DrawString(str, font, bFore, 2, 2);
bFore.Dispose();
bBack.Dispose();
MemoryStream ms = new MemoryStream();
bmp.Save(ms, System.Drawing.Imaging.ImageFormat.Png);
bmp.Dispose();
ms.Position = 0;
return ms;
}
|
如果你仔細看上面的程式，會發覺其中有字體預設的問題，若要以此觀念實作一個完整的架構，關於字型的資訊應於
XAML
中指定才好，不過目前我只是展示這個想法的可行性，就先放著這部份不理了。第二個要解決的問題是如何於
XAML
中指定
Data Bindings
資訊，這點不難，依據前版以
TAG
來指定
Binding Expression
的概念，只需加油添醋一番，即可套用。
|
<
Canvas
xmlns
=
"http://schemas.microsoft.com/client/2007"
...................
<
Name
=
"imgLastName"Tag="BindingField:LastName;BindingProperty:Source;Format:Default.aspx?Transform={INDEX}*{BindingField}"Width="300"Height="24"Canvas.Left="500"Canvas.Top="23" />
</
Canvas
>
|
請注意，由於採圖形方式的緣故，這裡已不再使用
TextBlock
，而是使用
控制項來顯示，
SLDH.js
也需稍做修改。
|
/////////////////////////////////////////////////////////////////////////
// Silverlight Data Binding Helper 0.1
/////////////////////////////////////////////////////////////////////////
if
(!window.SilverlightBinding)
window.SilverlightBinding = {};
SilverlightBinding.BindingData = function(ctrl,bindingExpression,context)
{
var bindings = bindingExpression.split(';');
this.bindingComplete = false;
this.ctrl = ctrl;
this.context = context;
for(var i = 0; i < bindings.length; i++)
{
var temp = bindings[i].split(':');
if(temp.length != 2)
{
this.bindingComplete = false;
return;
}
if(temp[0] == 'BindingField')
this.bindingField = temp[1];
else if(temp[0] == 'BindingProperty')
this.bindingProperty = temp[1];
else if(temp[0] == 'Format')
this.format = temp[1];
}
this.bindingComplete = true;
}
SilverlightBinding.BindingData.prototype =
{
updateValue : function(dataItem)
{
if(this.bindingComplete)
{
if(this.format)
{
var str = eval("this.format.replace('{0}',dataItem."+this.bindingField+');');
if(this.format.indexOf("INDEX") != -1)
str = str.replace("{INDEX}",this.context.currentDataIndex);
if(this.format.indexOf("BindingField") != -1)
str = str.replace("{BindingField}",this.bindingField);
eval('this.ctrl.'+this.bindingProperty+" = str;");
}
else
eval('this.ctrl.'+this.bindingProperty+' = dataItem.'+this.bindingField+';');
}
}
}
SilverlightBinding.BindingContext = function(bindingContainer)
{
var parseBindings = bindingContainer.tag.split(';');
this.bindingComplete = false;
this.bindingContainer = bindingContainer;
this.bindingControls = new Array();
this.currentDataIndex = 0;
this.recordCount = 0;
for(var i = 0; i < parseBindings.length; i++)
{
var parseBinding = parseBindings[i].split(':');
if(parseBinding[0] == "BindingContext")
{
var bindingMethods = parseBinding[1].split(',');
if(bindingMethods.length == 2)
{
this.bindingMethod = bindingMethods[0];
this.bindingCountMethod = bindingMethods[1];
this.bindingComplete = true;
}
}
}
if(!this.bindingComplete) alert('ERROR,Binding Failed.');
}
SilverlightBinding.BindingContext.prototype =
{
_childWorker : function(parent,parseParent)
{
if(parent.tag && parent.tag != '')
{
if(parseParent)
{
var bindingData = new SilverlightBinding.BindingData(parent,parent.tag,this);
if(bindingData.bindingComplete)
{
this.bindingControls.length++;
this.bindingControls[this.bindingControls.length-1] = bindingData;
}
else
delete bindingData;
}
try
{
var temp = parent.children;
}
catch(err)
{
return;
}
for(var i = 0; i < parent.children.count; i++)
this._childWorker(parent.children.getItem(i),true);
}
},
initialize:function()
{
this._childWorker(this.bindingContainer,false);
this._receiveCount();
this._receiveData(0);
},
OnSucceeded: function(result, userContext, methodName)
{
if (methodName == userContext.bindingMethod)
{
for(var i = 0; i < userContext.bindingControls.length; i++)
userContext.bindingControls[i].updateValue(result);
}
else if(methodName == userContext.bindingCountMethod)
userContext.recordCount = result;
},
OnFailed:function(error, userContext, methodName)
{
if(error !== null)
{
alert(error.get_message());
}
},
_receiveData: function(index)
{
eval('PageMethods.'+this.bindingMethod+'(index,this.OnSucceeded,this.OnFailed,this);');
},
_receiveCount: function()
{
eval('PageMethods.'+this.bindingCountMethod+'(this.OnSucceeded,this.OnFailed,this);');
},
next:function()
{
if(this.currentDataIndex+1 >= this.recordCount)
return;
this._receiveData(++this.currentDataIndex);
},
prev:function()
{
if(this.currentDataIndex -1 < 0)
return;
this._receiveData(--this.currentDataIndex);
}
}
|

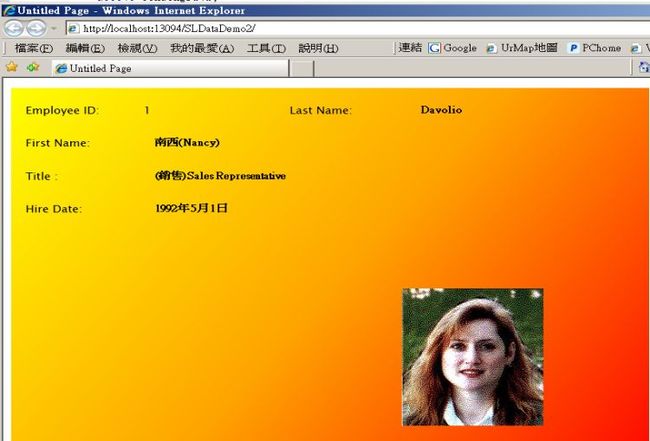

下圖為執行例。
後記
這種方式僅是一個應急的解法，畢竟傳輸圖形也是需要時間的，自然不比直接使用位於客戶端的字型來的有效率。
示例下載：
http://www.dreams.idv.tw/~code6421/files/SLDataDemo2.zip
