silverlight基础4-Style

Style



     Style用于设置一种控件的属性（background，Width，template等），从而可以使这种控件调用style中设置的属性

例如为button设置一种style，页面的button都可以使用这种style

    以下的例子展示一个button，当button点击时，能不断切换button的样式，首先建立一个工程Style_sample。

eg：

xmal中

代码

< UserControl  x:Class ="Style_sample.MainPage"
    xmlns ="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x ="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:d ="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc ="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable ="d"
    d:DesignHeight ="300"  d:DesignWidth ="400" >
         <!-- 一般style文件都放在XXX.Resources里面 -->
           < UserControl.Resources >
               <!-- Style one -->
              < Style  x:Key ="ButtonStyleOne"  TargetType ="Button" >
                 <!-- 设置button的各种样式 -->
                 < Setter  Property ="FontFamily"  Value ="Georgia"   />
                 < Setter  Property ="FontSize"  Value ="50"   />
                 < Setter  Property ="Foreground"  Value ="Blue"   />
                 < Setter  Property ="Width"  Value ="800"   />
                      <!-- 以SolidColorBrush填充button的背景，button背景显示黄色 -->
                       < Setter  Property ="Background" >
                       < Setter.Value >
                       < SolidColorBrush   Color ="Yellow" />
                       </ Setter.Value >
                    </ Setter >
                 </ Style >
               <!-- Style two -->
              < Style  x:Key ="ButtonStyleTwo"  TargetType ="Button" >
                < Setter  Property ="FontFamily"  Value ="Arial"   />
                < Setter  Property ="FontSize"  Value ="40"   />
                < Setter  Property ="Foreground"  Value ="red"   />
                < Setter  Property ="BorderThickness"  Value ="10"   />
                < Setter  Property ="Width"  Value ="500"   />
               <!-- 以LinearGradientBrush填充button的背景，button背景左上蓝色，中间绿色，右下红色，其余部分颜色通过这几种颜色内插 -->
                 < Setter  Property ="Background" >
                     < Setter.Value >
                     < LinearGradientBrush  StartPoint ="0,0"  EndPoint ="1,1" >
                         < GradientBrush.GradientStops >
                             < GradientStopCollection >
                                 < GradientStop  Color ="Blue"  Offset ="0.0" />
                                 < GradientStop  Color ="Green"  Offset ="0.5" />
                                 < GradientStop  Color ="Red"  Offset ="1.0" />
                             </ GradientStopCollection >
                         </ GradientBrush.GradientStops >
                     </ LinearGradientBrush >

                        </ Setter.Value >
                      </ Setter >
                    </ Style >
               </ UserControl.Resources >
              <!-- 初始状态Button的样式为StyleOne -->
              < Button  x:Name ="TestButton"  Content ="A Customized Button"
                Style =" {StaticResource ButtonStyleOne} "  Click ="Button_Click"  Height ="64"   >
              </ Button >

</ UserControl >





xmal.cs中

代码

using  System;
using  System.Collections.Generic;
using  System.Linq;
using  System.Net;
using  System.Windows;
using  System.Windows.Controls;
using  System.Windows.Documents;
using  System.Windows.Input;
using  System.Windows.Media;
using  System.Windows.Media.Animation;
using  System.Windows.Shapes;

namespace  Style_sample
{
     public   partial   class  MainPage : UserControl
    {
         public  MainPage()
        {
            InitializeComponent();
        }

         private   void  Button_Click( object  sender, RoutedEventArgs e)
        {
             if  (TestButton.Style  ==  (Style) this .Resources[ " ButtonStyleOne " ])  //如果当前是样式1，点击切换样式2
            {
                TestButton.Style  =  (Style) this .Resources[ " ButtonStyleTwo " ];
            }
             else
            {
                TestButton.Style  =  (Style) this .Resources[ " ButtonStyleOne " ];
            }
        }
    }
}





界面如下：

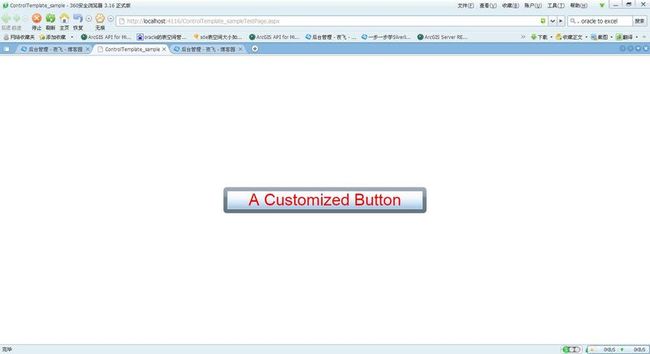

页面初始化时

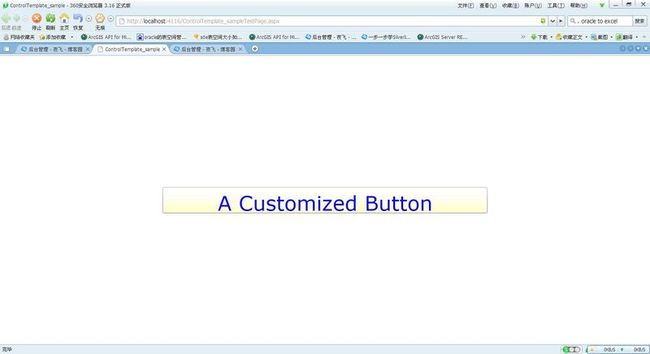

单击button后：



    以上的例子就展示了button采用不同的style时，显示不同的效果，一般情况下，style会放在容器（grid，stackpanel等）XXX的XXX.resources中，这样容器XXX中的其他控件就可以直接调用这个style

     此外也可以将style嵌入到button中，一般不怎么常用

xmal中：

代码

  < Button  Content ="Button" >
         < Button.Style >
             < Style  TargetType ="Button" >
                   < Setter  Property ="FontFamily"  Value ="Georgia"   />
                   < Setter  Property ="FontSize"  Value ="50"   />
                   < Setter  Property ="Foreground"  Value ="Blue"   />
                   < Setter  Property ="Width"  Value ="800"   />

                       < Setter  Property ="Background" >
                            < Setter.Value >
                              < SolidColorBrush   Color ="Yellow" />
                            </ Setter.Value >
                       </ Setter >
                  </ Style >
           </ Button.Style >
   </ Button >
