NetAdvantage 设计友好UI－－WebCombo

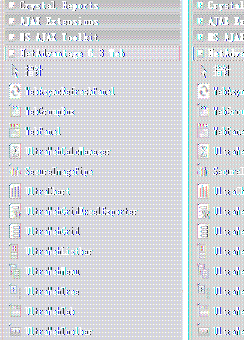

    NetAdvantage 设计了好多界面漂亮友好的控件，而且还很好的应用了AJAX技术。最新版本的NetAdvantage 可以到官方网站下载： http://www.infragistics.com/。下载安装后点击程序菜单里的Create NetAdvantage Visual Studio Toolbo 将在.NET中为NetAdvantage 添加一个选项卡，NetAdvantage 所有的控件都放在里边了。

      WebCombo 是一个用于网页上的组合框，利用他可以创建一个多列的下拉框。程序代码： NetAdvantageGrid.rar
      一、新建一个.NET2005 Web 项目。
      二、向Default.aspx页面添加一个WebCombo 控件。
      三、选中控件，点击控件右上角的小三角，在Actions选项中为控件选择一个你喜欢的风格。
      三、右键菜单中选择   Quick Design 弹出设计对话框。

      四、点击Edit Data Structure，然后点击Edit Columns按钮，进入列设计视图。这里默认已经添加了一列，你可以选中该列，再右侧的属性栏里修改他的属性。通过Header下的Caption可以修改列的标题。也可以在属性栏的上方点击新建按钮，来创建列。这里，我创建了两个列，分别为姓名和年龄列。
      五、选择Data Structure 下的Edit Data Structure   ,然后点击Edit Columns按钮Edit Rows,在你创建的列里边添加信息。完成后点击OK按钮确认修改。
      六、生成代码如下：

<% @ Page Language = " C# "  AutoEventWireup = " true "   CodeFile = " Default.aspx.cs "  Inherits = " _Default "   %>

<% @ Register Assembly = " Infragistics2.WebUI.WebCombo.v6.3, Version=6.3.20063.53, Culture=neutral, PublicKeyToken=7dd5c3163f2cd0cb "
    Namespace = " Infragistics.WebUI.WebCombo "  TagPrefix = " igcmbo "   %>
<% @ Register Assembly = " Infragistics2.WebUI.UltraWebGrid.v6.3, Version=6.3.20063.53, Culture=neutral, PublicKeyToken=7dd5c3163f2cd0cb "
    Namespace = " Infragistics.WebUI.UltraWebGrid "  TagPrefix = " igtbl "   %>

<! DOCTYPE html PUBLIC  " -//W3C//DTD XHTML 1.0 Transitional//EN "   " http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd " >

< html xmlns = " http://www.w3.org/1999/xhtml "   >
< head runat = " server " >
     < title > 无标题页 </ title >
     < link href = " ~/ig_common/20063CLR20/Styles/Office2007Silver/ig_WebCombo.css  "  rel = " Stylesheet "
        type = " text/css "   />
     < link href = " ~/ig_common/20063CLR20/Styles/Office2007Black/ig_WebCombo.css  "  rel = " Stylesheet "
        type = " text/css "   />
</ head >
< body >
     < form id = " form1 "  runat = " server " >
     < div >
         < igcmbo:WebCombo ID = " WebCombo1 "  runat = " server "  BorderColor = " #A9B1B8 "  CssClass = " igWebComboMain "
            DropImage1 = " ~/ig_common/20063CLR20/Styles/Office2007Black/WebCombo/office2007ddup.gif "
            DropImage2 = " ~/ig_common/20063CLR20/Styles/Office2007Black/WebCombo/office2007dddown.gif "
            DropImageXP1 = " ~/ig_common/20063CLR20/Styles/Office2007Black/WebCombo/office2007ddup.gif "
            DropImageXP2 = " ~/ig_common/20063CLR20/Styles/Office2007Black/WebCombo/office2007dddown.gif "
            HideDropDowns = " False "  SelBackColor = " 232, 234, 236 "  SelForeColor = " Black "  Version = " 4.00 " >
             < ExpandEffects ShadowColor = " LightGray "   />
             < Rows >
                 < igtbl:UltraGridRow Height = "" >
                     < cells >
< igtbl:UltraGridCell Text = " ☆聊ゾ聊☆ 22 " ></ igtbl:UltraGridCell >
< igtbl:UltraGridCell Text = " 22 " ></ igtbl:UltraGridCell >
</ cells >
                 </ igtbl:UltraGridRow >
                 < igtbl:UltraGridRow Height = "" >
                     < cells >
< igtbl:UltraGridCell Text = " ☆聊ゾ聊☆ 23 " ></ igtbl:UltraGridCell >
< igtbl:UltraGridCell Text = " 23 " ></ igtbl:UltraGridCell >
</ cells >
                 </ igtbl:UltraGridRow >
                 < igtbl:UltraGridRow Height = "" >
                     < cells >
< igtbl:UltraGridCell Text = " ☆聊ゾ聊☆ 24 " ></ igtbl:UltraGridCell >
< igtbl:UltraGridCell Text = " 24 " ></ igtbl:UltraGridCell >
</ cells >
                 </ igtbl:UltraGridRow >
                 < igtbl:UltraGridRow Height = "" >
                     < cells >
< igtbl:UltraGridCell Text = " ☆聊ゾ聊☆ 25 " ></ igtbl:UltraGridCell >
< igtbl:UltraGridCell Text = " 25 " ></ igtbl:UltraGridCell >
</ cells >
                 </ igtbl:UltraGridRow >
             </ Rows >
             < DropDownLayout AllowSorting = " OnClient "  BorderCollapse = " Separate "  DropdownHeight = " 500px "
                DropdownWidth = " 600px "  GridLines = " Horizontal "  HeaderClickAction = " SortSingle "  RowHeightDefault = " 20px "
                Version = " 4.00 " >
                 < HeaderStyle BorderStyle = " None "  CssClass = " igWebComboDropDownGridHeaderBlack2k7 " >
                     < BorderDetails WidthLeft = " 0px "  WidthTop = " 0px "   />
                 </ HeaderStyle >
                 < Images ImageDirectory = " ~/ig_common/20063CLR20/Styles/Office2007Black/WebCombo/ " >
                 </ Images >
                 < RowSelectorStyle CssClass = " igwgRowSlctrBlack2k7 " >
                 </ RowSelectorStyle >
                 < ImageUrls ImageDirectory = " ~/ig_common/20063CLR20/Styles/Office2007Black/WebCombo/ "   />
                 < RowAlternateStyle CssClass = " igwgRowAltBlack2k7 " >
                 </ RowAlternateStyle >
                 < FrameStyle CssClass = " igWebComboDropDownFrameBlue2k7 "  Cursor = " Default "  Height = " 500px "
                    Width = " 600px " >
                 </ FrameStyle >
                 < RowStyle CssClass = " igwgRowBlack2k7 " >
                     < BorderDetails WidthLeft = " 0px "  WidthTop = " 0px "   />
                 </ RowStyle >
                 < SelectedRowStyle CssClass = " igwgRowSelBlack2k7 "   />
             </ DropDownLayout >
             < Columns >
                 < igtbl:UltraGridColumn HeaderText = " 姓名 " >
                     < header caption = " 姓名 " ></ header >
                 </ igtbl:UltraGridColumn >
                 < igtbl:UltraGridColumn HeaderText = " 年龄 " >
                     < header caption = " 年龄 " >
< RowLayoutColumnInfo OriginX = " 1 " ></ RowLayoutColumnInfo >
</ header >
                     < footer >
< RowLayoutColumnInfo OriginX = " 1 " ></ RowLayoutColumnInfo >
</ footer >
                 </ igtbl:UltraGridColumn >
             </ Columns >
         </ igcmbo:WebCombo >
         & nbsp; & nbsp; </ div >
     </ form >
</ body >
</ html >

     七、保存项目，运行。在组合框的下拉列表里可以看到一个表格，表格中的行可以被选中。
