一、Spring cloud 相关组件停更及替换方案（看图）

spring cloud 入门学习【结合实例】——开发工具为idea_第1张图片


二、说明

本文章使用的cloud组件：

eureka
ribbon
openfeign

三、版本说明

spring boot 与 cloud 版本对应关系：

spring cloud 入门学习【结合实例】——开发工具为idea_第2张图片


根据官网推荐，本文使用spring boot 2.2.2 + spring cloud Hoxton.SR1
当前最佳：spring boot 2.3.1.RELEASE + spring cloud Hoxton.SR6

其它：

jdk1.8, maven 3.6.3

四、开始工程

工程介绍：
订单模块——>eureka(高可用)——>(负载均衡)支付模块
修改hosts文件：
添加一行：

127.0.0.1  localhost2

1、工程目录

spring cloud 入门学习【结合实例】——开发工具为idea_第3张图片


2、父工程

使用idea创建新工程

使用maven工具创建-选择jdk1.8-修改项目名、groupid

spring cloud 入门学习【结合实例】——开发工具为idea_第4张图片


修改pom文件



    4.0.0

    org.learning.springcloud
    new-cloud
    1.0-SNAPSHOT

    pom

    Maven

    http://maven.apache.org/
    2001



            website
            scp://webhost.company.com/www/website




        UTF-8
        1.8
        1.8
        4.12
        1.2.17
        1.16.18
        5.1.47
        1.1.16
        1.3.0






                    maven-clean-plugin
                    3.1.0


                    maven-site-plugin
                    3.7.1


                    maven-project-info-reports-plugin
                    3.0.0


                    org.springframework.boot
                    spring-boot-maven-plugin

                        true
                        true






                org.apache.maven.plugins
                maven-site-plugin

                    en,fr









                org.springframework.boot
                spring-boot-dependencies
                2.2.2.RELEASE
                pom
                import




                org.springframework.cloud
                spring-cloud-dependencies
                Hoxton.SR1
                pom
                import



                com.alibaba.cloud
                spring-cloud-alibaba-dependencies
                2.1.0.RELEASE
                pom
                import



                mysql
                mysql-connector-java
                ${mysql.version}



                com.alibaba
                druid
                ${druid.version}



                org.mybatis.spring.boot
                mybatis-spring-boot-starter
                ${mybatis.spring.boot.version}



                junit
                junit
                ${junit.version}



                log4j
                log4j
                ${log4j.version}



                org.projectlombok
                lombok
                ${lombok.version}
                true



                org.springframework.boot
                spring-boot-devtools
                runtime
                true

其中重点：

pom父工程必须指定参数为pom
...
可以被子项目继承的依赖信息，子项目引入相同依赖时可以不指定版本号，如果指定，则会使用自己的版本

从idea面板右侧的maven工具栏，先clean再install

3、创建子工程eureka-server-7001

右击父工程根目录，新建module，使用maven工具，选择jdk1.8，finish
pom文件添加依赖：



            org.springframework.cloud
            spring-cloud-starter-netflix-eureka-server


            org.springframework.boot
            spring-boot-starter-web


            org.springframework.boot
            spring-boot-starter-actuator


            org.springframework.boot
            spring-boot-devtools
            2.2.2.RELEASE
            runtime
            true


            org.springframework.boot
            spring-boot-starter-test

pom文件其它不用改

创建src/main/resources/application.yml配置文件
内容如下（注意yml文件格式）：

server:
  port: 7001

eureka:
  instance:
    hostname: localhost  #当前server名
  client:
    register-with-eureka: false   #此client不在eureka中注册，因为是其本身
    fetch-registry: false   #不要去注册中心获取其他服务的地址
    service-url:
      defaultZone: http://localhost2:7002/eureka/   #注册到eureka-server-7002

两个eureka相互注册实现高可用，也可使用多个

创建启动类com.learning.springcloud.Server7001Main

package com.learning.springcloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;

/**
 * @author xxxx
 * @version 1.0
 * @create 2020/8/2 4:44 下午
 */
@SpringBootApplication
@EnableEurekaServer
public class Server7001Main {
    public static void main(String[] args) {
        SpringApplication.run(Server7001Main.class,args);
    }
}

4、创建子工程eureka-server-7002

和eureka-server-7001步骤一致
pom文件直接复制7001的
只需对application.yml文件简单修改：

server:
  port: 7002

eureka:
  instance:
    hostname: localhost2  #当前server名
  client:
    register-with-eureka: false   #此client不在eureka中注册，因为是其本身
    fetch-registry: false   #不要去注册中心获取其他服务的地址
    service-url:
      defaultZone: http://localhost:7001/eureka/   #注册到eureka-server-7002

主启动类改个名就可以了

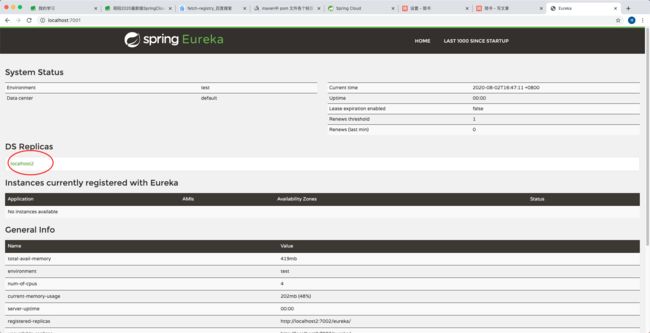

启动两个子工程，通过浏览器访问http:localhost:7001，看到如下页面及成功配置高可用server

spring cloud 入门学习【结合实例】——开发工具为idea_第5张图片


5、创建子工程commons-api

此工程是多个子工程用到的公用代码，将作为依赖引入其它子项目
pom文件引依赖：



            org.projectlombok
            lombok

创建类com.learning.springcloud.entities.Payment

package com.learning.springcloud.entities;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

/**
 * @author xxxx
 * @version 1.0
 * @create 2020/8/2 5:21 下午
 */
@Data   //自动生成get、set方法
@AllArgsConstructor   //自动生成全参构造器
@NoArgsConstructor   //自动生成无参构造器
public class Payment {
    private Long id;
    private String serial;
}

创建类com.learning.springcloud.entities.CommonResult

package com.learning.springcloud.entities;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

/**
 * @author xxxx
 * @version 1.0
 * @create 2020/8/2 5:21 下午
 */
@Data
@AllArgsConstructor
@NoArgsConstructor
public class CommonResult {
    private Integer code;
    private String message;
    private T data;
}

clean项目、install项目

创建子工程payment-8001

pom文件加依赖



            org.learning.springcloud
            commons-api
            1.0-SNAPSHOT


            org.springframework.cloud
            spring-cloud-starter-netflix-eureka-client


            org.springframework.boot
            spring-boot-starter-web


            org.springframework.boot
            spring-boot-starter-actuator


            org.projectlombok
            lombok


            org.springframework.boot
            spring-boot-starter-test


            org.springframework.boot
            spring-boot-starter-jdbc


            com.alibaba
            druid-spring-boot-starter
            1.1.10


            org.mybatis.spring.boot
            mybatis-spring-boot-starter


            mysql
            mysql-connector-java


            org.springframework.boot
            spring-boot-devtools
            2.2.2.RELEASE
            runtime
            true


            log4j
            log4j

创建src/main/resources/application.yml配置文件

server:
  port: 8001

spring:
  application:
    name: cloud-payment    #本微服务名称
  datasource:    #jdbs连接参数
    type: com.alibaba.druid.pool.DruidDataSource
    driver-class-name: org.gjt.mm.mysql.Driver
    url: jdbc:mysql://localhost:3306/db2020?useUnicode=true&characterEncoding=utf-8&useSSL=false
    username: root
    password: 12345687

eureka:
  client:
    register-with-eureka: true  #要注册到服务中心
    fetch-registry: true   #可以从服务中心获取其它服务信息
    service-url: http://localhost:7001/eureka,http://localhost2:7002/eureka   #向两个服务中心进行注册
  instance:
    instance-id: payment8001   #微服务的具体实例别名
    prefer-ip-address: true

mybatis:
  mapper-locations: classpath:mapper/*.xml    #mybatis配置mapper地址
  type-aliases-package: com.learning.springcloud.entities    #对应的实体类包

启动类com.learning.springcloud.Payment8001Main

package com.learning.springcloud;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;

/**
 * @author xxxx
 * @version 1.0
 * @create 2020/8/2 5:41 下午
 */
@SpringBootApplication
@EnableEurekaClient
public class Payment8001Main {
    public static void main(String[] args) {
        SpringApplication.run(Payment8001Main.class,args);
    }
}

创建接口com.learning.springcloud.dao.PaymentDao

package com.learning.springcloud.dao;

import com.learning.springcloud.entities.Payment;
import org.apache.ibatis.annotations.Mapper;
import org.apache.ibatis.annotations.Param;

/**
 * @author xxxx
 * @version 1.0
 * @create 2020/8/2 5:42 下午
 */
@Mapper    //重要注解
public interface PaymentDao {
    Payment getPaymentById(@Param("id") Long id);
    int create(Payment payment);
}

创建src/main/resources/mapper/PaymentMapper.xml





        insert into payment(serial) values (#{serial});

namespace属性别忘记

创建接口com.learning.springcloud.service.PaymentService及实现类com.learning.springcloud.service.impl.PaymentServiceImpl

package com.learning.springcloud.service;

import com.learning.springcloud.entities.Payment;

/**
 * @author xxxx
 * @version 1.0
 * @create 2020/8/2 6:14 下午
 */
public interface PaymentService {
    Payment getPaymentById(Long id);
    int create(Payment payment);
}

package com.learning.springcloud.service.impl;

import com.learning.springcloud.dao.PaymentDao;
import com.learning.springcloud.entities.Payment;
import com.learning.springcloud.service.PaymentService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.stereotype.Service;

import javax.annotation.Resource;

/**
 * @author xxxx
 * @version 1.0
 * @create 2020/8/2 6:15 下午
 */
@Service
public class PaymentServiceImpl implements PaymentService {
    @Resource
    private PaymentDao paymentDao;

    @Override
    public Payment getPaymentById(Long id) {
        return paymentDao.getPaymentById(id);
    }

    @Override
    public int create(Payment payment) {
        return paymentDao.create(payment);
    }
}

com.learning.springcloud.controller.PaymentController

package com.learning.springcloud.controller;

import com.learning.springcloud.entities.CommonResult;
import com.learning.springcloud.entities.Payment;
import com.learning.springcloud.service.PaymentService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RestController;

import javax.annotation.Resource;

/**
 * @author xxxx
 * @version 1.0
 * @create 2020/8/2 6:18 下午
 */
@RestController
@Slf4j
public class PaymentController {
    @Resource
    private PaymentService paymentService;

    @Value("${server.port}")
    private String serverPort;

    @GetMapping(value = "/payment/get/{id}")
    CommonResult getPaymentById(@PathVariable("id") Long id){
        Payment result = paymentService.getPaymentById(id);
        log.info("******查询结果：{}", result);
        if (result != null){
            return new CommonResult(200, "select success", result);
        }else {
            return new CommonResult(444, "select fail");
        }
    }

    @PostMapping(value = "/payment/create")
    CommonResult create(@RequestBody Payment payment){
        log.info("~~~~~~~~~~~~~XXXXX:{}",payment);
        int result = paymentService.create(payment);
        log.info("******插入结果：" + result);
        if (result > 0){
            return new CommonResult<>(200, "create success, server_port:" + serverPort, result);
        }else {
            return new CommonResult<>(444, "create fail");
        }
    }
}

子项目payment-8002

基本复制8001
application.yml配置文件有所变化
端口改为8002
instance-id为payment8002
可以启动服务器后再启动两个payment微服务，在浏览器上进行访问验证是否成功http://localhost:8002/payment/get/1

创建子工程order-80

pom文件依赖



            org.springframework.cloud
            spring-cloud-starter-openfeign


            org.springframework.cloud
            spring-cloud-starter-netflix-eureka-client


            org.springframework.boot
            spring-boot-starter-web


            org.springframework.boot
            spring-boot-starter-actuator


            org.projectlombok
            lombok


            org.springframework.boot
            spring-boot-starter-test
            test


            junit
            junit
            test


            org.springframework.boot
            spring-boot-devtools
            2.2.2.RELEASE
            runtime
            true


            org.learning.springcloud
            commons-api
            1.0-SNAPSHOT

application.yml

server:
  port: 80

spring:
  application:
    name: order-server-80

eureka:
  client:
    register-with-eureka: true
    fetch-registry: true
    service-url:
      defaultZone: http://localhost:7001/eureka,http://localhost2:7002/eureka

ribbon:
  ReadTimeout: 5000
  ConnectTimeout: 5000

logging:
  level:
    com.springcloud.demo.services.PaymentFeignService: debug

com.learning.springcloud.config.FeignConfig

package com.learning.springcloud.config;

import feign.Logger;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

/**
 * @author xxxx
 * @version 1.0
 * @create 2020/8/3 10:22 上午
 */
@Configuration
public class FeignConfig {
    @Bean
    public Logger.Level feignLoggerLevel(){
        return Logger.Level.FULL;
    }
}

com.learning.springcloud.service.OrderPaymentService

openfeign通过ribbon实现负载均衡

import org.springframework.stereotype.Service;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestBody;

import javax.annotation.Resource;

/**
 * @author xxxx
 * @version 1.0
 * @create 2020/8/3 10:09 上午
 */
@Service
@FeignClient(value = "cloud-payment")
public interface OrderPaymentService {
    @GetMapping(value = "/payment/get/{id}")
    CommonResult getPaymentById(@PathVariable("id") Long id);

    @GetMapping(value = "/payment/create")
    CommonResult create(@RequestBody Payment payment);
}

com.learning.springcloud.controller.OrderPaymentController

package com.learning.springcloud.controller;

import com.learning.springcloud.entities.CommonResult;
import com.learning.springcloud.entities.Payment;
import com.learning.springcloud.service.OrderPaymentService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.cloud.client.discovery.DiscoveryClient;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RestController;

import javax.annotation.Resource;

/**
 * @author xxxx
 * @version 1.0
 * @create 2020/8/3 9:55 上午
 */
@RestController
@Slf4j
public class OrderPaymentController {

    @Resource
    private OrderPaymentService orderPaymentService;

    @GetMapping(value = "/order/payment/get/{id}")
    CommonResult getPaymentById(@PathVariable("id") Long id){
        return orderPaymentService.getPaymentById(id);
    }

    @GetMapping(value = "/order/payment/create")
    CommonResult create(Payment payment){
        return orderPaymentService.create(payment);
    }

}

一个简单的cloud后端服务已完成，实现类注册中心的高可用和子服务的负载均衡，启动顺序为先启动两个eureka注册中心，再启动其它微服务，然后可以通过浏览器访问验证http://localhost/order/payment/create?id=3&serial=ere

本文章参照尚硅谷周阳老师视频完成，进一步学习可以网上搜索他的视频

spring cloud 入门学习【结合实例】——开发工具为idea
