Android Market的 Loading效果

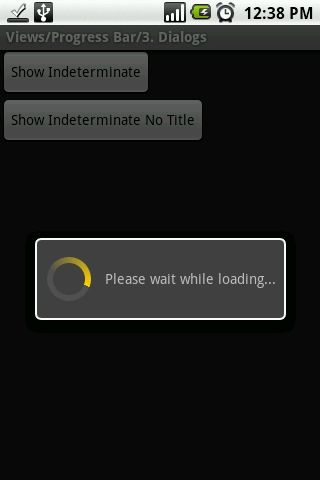

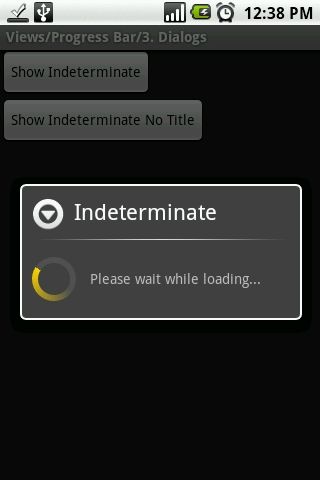

在Android中,要实现Loading效果，一般情况下都使用ProgressDialog控件。ApiDemos/src/com/example/android/apis/view/ProgressBar3.java 提供两个demo:

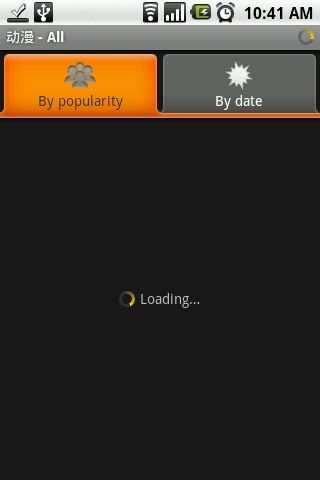

仔细看了Android Market，发现却是不一样的，请看截图:

那到底如何实现呢？首先，我们创建一个布局文件,

res/layout/fullscreen_loading_indicator.xml, 其内容如下:

 <?xml version="1.0" encoding="utf-8"?> <LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" android:gravity="center_vertical|center_horizontal" android:orientation="horizontal" android:id="@+id/fullscreen_loading_indicator" android:visibility="gone" android:layout_width="fill_parent" android:layout_height="fill_parent" > <ProgressBar android:layout_gravity="center_vertical" android:layout_width="wrap_content" android:layout_height="wrap_content" style="?android:attr/progressBarStyleSmall" > </ProgressBar> <TextView android:id="@+id/current_action" android:layout_width="wrap_content" android:layout_height="wrap_content" android:layout_marginLeft="5.0dip" android:text="@string/loading" > </TextView> </LinearLayout>

然后在main.xml 把它include 进来

 <?xml version="1.0" encoding="utf-8"?> <FrameLayout xmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="fill_parent" android:layout_height="fill_parent" > <LinearLayout android:orientation="vertical" android:id="@+id/main_info" android:visibility="gone" android:layout_width="fill_parent" android:layout_height="fill_parent" > </LinearLayout> <include android:visibility="visible" android:layout_width="fill_parent" android:layout_height="fill_parent" layout="@layout/fullscreen_loading_indicator" > </include> </FrameLayout>

主程序 Loading.java:

package org.lytsing.android.loading; import android.app.Activity; import android.os.Bundle; import android.widget.LinearLayout; public class Loading extends Activity { private LinearLayout mLoadingLayout; /** Called when the activity is first created. */ @Override public void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.main); // TODO: dismiss the loading, use this snippet code. //mLoadingLayout = (LinearLayout)findViewById(R.id.fullscreen_loading_indicator); //mLoadingLayout.setVisibility(View.GONE); } }

运行的效果为:

代码下载:  https://github.com/lytsing/MarketLoading
