SSM框架项目结构以及版本匹配

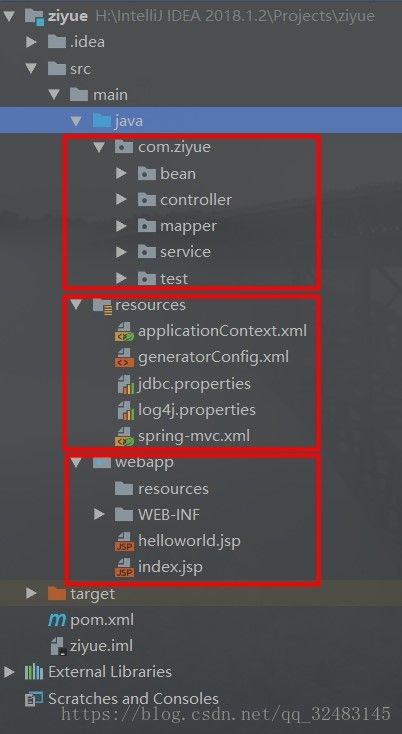

一.SSM框架项目结构

 1.java
    ①.bean层：实体类
    ②controller层：SpringMVC的控制类
    ③.mapper层：mapper接口和mapper.xml文件
    ④service层：服务类

 2.resources
    ①.applicationContent.xml：Spring的配置文件（Mybatis的配置也整合在里面了）
    ②generatorConfig.xml：使用Mybatis-generator插件由数据库生成代码（Book类，BookExample类，BookMapper接口，BookMapper.xml文件）必须的配置文件
    ③.jdbc.properties：数据库连接的url，用户名和密码等作为配置文件保存
    ④.log4j.properties：日志文件的配置
    ⑤.spring-mvc.xml：SpringMVC的配置文件

 3.webapp
     包含jsp文件和WEB-INF下的web.xml文件

二.SSM适配的版本

 1.mybatis版本错误：
     java.lang.IllegalAccessError: org.apache.commons.dbcp.DelegatingPreparedStatement.isClosed()
 2.mybatis-spring版本错误：
     j java.lang.AbstractMethodError: org.mybatis.spring.transaction.SpringManagedTransaction.getTimeout()Ljava/lang/Integer;

 3.下面是SSM框架所依赖的jar包：

<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0
         http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0modelVersion>

  <groupId>com.ziyuegroupId>
  <artifactId>ziyueartifactId>
  <version>1.0-SNAPSHOTversion>
  <packaging>warpackaging>

  <name>ziyue Maven Webappname>
  <url>http://www.example.comurl>

  <properties>
    <project.build.sourceEncoding>UTF-8project.build.sourceEncoding>
    <maven.compiler.source>1.7maven.compiler.source>
    <maven.compiler.target>1.7maven.compiler.target>

      <spring.version>5.0.6.RELEASEspring.version>

      <mybatis.version>3.4.5mybatis.version>

      <slf4j.version>1.7.7slf4j.version>
      <log4j.version>1.2.17log4j.version>
  properties>



    <dependencies>
        <dependency>
            <groupId>junitgroupId>
            <artifactId>junitartifactId>
            <version>4.11version>

            <scope>testscope>
        dependency>

        <dependency>
            <groupId>org.springframeworkgroupId>
            <artifactId>spring-coreartifactId>
            <version>${spring.version}version>
        dependency>

        <dependency>
            <groupId>org.springframeworkgroupId>
            <artifactId>spring-webartifactId>
            <version>${spring.version}version>
        dependency>
        <dependency>
            <groupId>org.springframeworkgroupId>
            <artifactId>spring-oxmartifactId>
            <version>${spring.version}version>
        dependency>
        <dependency>
            <groupId>org.springframeworkgroupId>
            <artifactId>spring-txartifactId>
            <version>${spring.version}version>
        dependency>

        <dependency>
            <groupId>org.springframeworkgroupId>
            <artifactId>spring-jdbcartifactId>
            <version>${spring.version}version>
        dependency>

        <dependency>
            <groupId>org.springframeworkgroupId>
            <artifactId>spring-webmvcartifactId>
            <version>${spring.version}version>
        dependency>
        <dependency>
            <groupId>org.springframeworkgroupId>
            <artifactId>spring-aopartifactId>
            <version>${spring.version}version>
        dependency>

        <dependency>
            <groupId>org.springframeworkgroupId>
            <artifactId>spring-context-supportartifactId>
            <version>${spring.version}version>
        dependency>

        <dependency>
            <groupId>org.springframeworkgroupId>
            <artifactId>spring-testartifactId>
            <version>${spring.version}version>
        dependency>

        <dependency>
            <groupId>org.mybatisgroupId>
            <artifactId>mybatisartifactId>
            <version>${mybatis.version}version>
        dependency>

        <dependency>
            <groupId>org.mybatisgroupId>
            <artifactId>mybatis-springartifactId>
            <version>1.3.2version>
        dependency>

        <dependency>
            <groupId>javaxgroupId>
            <artifactId>javaee-apiartifactId>
            <version>7.0version>
        dependency>

        <dependency>
            <groupId>mysqlgroupId>
            <artifactId>mysql-connector-javaartifactId>
            <version>8.0.11version>
        dependency>

        <dependency>
            <groupId>commons-dbcpgroupId>
            <artifactId>commons-dbcpartifactId>
            <version>1.4version>
        dependency>

        <dependency>
            <groupId>jstlgroupId>
            <artifactId>jstlartifactId>
            <version>1.2version>
        dependency>


        <dependency>
            <groupId>log4jgroupId>
            <artifactId>log4jartifactId>
            <version>${log4j.version}version>
        dependency>



        <dependency>
            <groupId>com.alibabagroupId>
            <artifactId>fastjsonartifactId>
            <version>1.1.41version>
        dependency>


        <dependency>
            <groupId>org.slf4jgroupId>
            <artifactId>slf4j-apiartifactId>
            <version>${slf4j.version}version>
        dependency>

        <dependency>
            <groupId>org.slf4jgroupId>
            <artifactId>slf4j-log4j12artifactId>
            <version>${slf4j.version}version>
        dependency>


        <dependency>
            <groupId>org.codehaus.jacksongroupId>
            <artifactId>jackson-mapper-aslartifactId>
            <version>1.9.13version>
        dependency>

        <dependency>
            <groupId>commons-fileuploadgroupId>
            <artifactId>commons-fileuploadartifactId>
            <version>1.3.1version>
        dependency>
        <dependency>
            <groupId>commons-iogroupId>
            <artifactId>commons-ioartifactId>
            <version>2.4version>
        dependency>
        <dependency>
            <groupId>commons-codecgroupId>
            <artifactId>commons-codecartifactId>
            <version>1.9version>
        dependency>


    dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.mybatis.generatorgroupId>
                <artifactId>mybatis-generator-maven-pluginartifactId>
                <version>1.3.6version>
                <configuration>

                    <configurationFile>src/main/resources/generatorConfig.xmlconfigurationFile>
                    <verbose>trueverbose>
                    <overwrite>trueoverwrite>
                configuration>








                <dependencies>
                    <dependency>
                        <groupId>org.mybatis.generatorgroupId>
                        <artifactId>mybatis-generator-coreartifactId>
                        <version>1.3.6version>
                    dependency>

                    <dependency>
                        <groupId>mysqlgroupId>
                        <artifactId>mysql-connector-javaartifactId>
                        <version>8.0.11version>
                    dependency>
                dependencies>
            plugin>
        plugins>
    <finalName>ziyuefinalName>
    <pluginManagement>
      <plugins>
        <plugin>
          <artifactId>maven-clean-pluginartifactId>
          <version>3.0.0version>
        plugin>

        <plugin>
          <artifactId>maven-resources-pluginartifactId>
          <version>3.0.2version>
        plugin>
        <plugin>
          <artifactId>maven-compiler-pluginartifactId>
          <version>3.7.0version>
        plugin>
        <plugin>
          <artifactId>maven-surefire-pluginartifactId>
          <version>2.20.1version>
        plugin>
        <plugin>
          <artifactId>maven-war-pluginartifactId>
          <version>3.2.0version>
        plugin>
        <plugin>
          <artifactId>maven-install-pluginartifactId>
          <version>2.5.2version>
        plugin>
        <plugin>
          <artifactId>maven-deploy-pluginartifactId>
          <version>2.8.2version>
        plugin>
      plugins>
    pluginManagement>
  build>
project>
