ansible——关于自定义事实的练习

一、创建事实并且安装Apache

在受管主机上编写自定义事实文件和playbook。要求playbook可以完成受管主机上Apache的安装和启动

（1）在控制主机上创建自定义事实文件：

（2）编写playbook将控制主机上的事实文件并拷贝到受管主机指定位置：

---
- name: Install facts
  hosts: servera.lab.example.com #受管主机
  vars:
    remote_dir: /etc/ansible/facts.d #指定远程受管主机的事实存放目录
    facts_file: custom.fact  #指定管理主机上的源事实文件
  tasks:
    - name: Create Directory  #创建远程主机事实目录
      file:    #使用file模块
        state: directory
        recurse: yes
        path: "{{ remote_dir }}"
    - name: Install new facts  #使用copy模块创建受管主机的事实文件
      copy:
        src: "{{ facts_file }}"
        dest: "{{ remote_dir }}"
...

验证playbook是否编辑成功：使用setup模块查看受管主机事实：ansible servera.lab.example.com -m setup

（3）使用自定义事实，编写并运行主playbook，让受管主机安装并启动Apache

---
- name: Install and start Apache
  hosts: servera.lab.example.com
  tasks:
    - name: Install Apache
      yum:
        name: "{{ ansible_facts['ansible_local']['custom']['linux']['package'] }}"
        state: latest
    - name: Start Apache
      service:
        name: "{{ ansible_facts['ansible_local']['custom']['linux']['service'] }}"
        state: "{{ ansible_facts['ansible_local']['custom']['linux']['state'] }}"
        enabled: "{{ ansible_facts['ansible_local']['custom']['linux']['enabled'] }}"
...

（4）验证受管主机：ansible servera.lab.example.com -m command -a ‘systemctl status httpd’

二、使用基本身份认证的httpd

（1）创建项目目录，编写清单和配置文件：

（2）编写playbook：vim playbook.yml

---
- name: webserver Vars
  hosts: web
  become: yes
  vars:
    firewall_pkg: firewalld ###火墙的包
    firewall_srv: firewalld  ###火墙服务
    web_pkg: httpd  ##Apache的包
    web_srv: httpd   ##Apache的服务
    ssl_pkg: mod_ssl ##Apache加密需要的插件
    httpdconf_src: files/httpd.conf ##指定的httpd配置文件源,需要后续创建
    httpdconf_dest: /etc/httpd/conf/httpd.conf  ##httpd默认配置文件存放目的地
    secrets_dir: /etc/httpd/secrets ##加密目录，存放加密文件，需要后续新建
    secrets_src: files/htpasswd  ##用户加密文件源，
    secrets_dest: "{{ secrets_dir }}/htpasswd"  ##加密文件存放目的地
    web_root: /var/www/html ##httpd默认发布页面目录
  tasks:
    - name: Install Packages		#安装服务包
      yum:
        name:
          - "{{ firewall_pkg }}"
          - "{{ web_pkg }}"
          - "{{ ssl_pkg }}"
        state: latest
    - name: Configure service		#配置服务
      copy:
        src: "{{ httpdconf_src }}"
        dest: "{{ httpdconf_dest }}"
        owner: root
        group: root
        mode: 0644			#文件权限
    - name: Creat secrets directory	#创建加密目录
      file:
        path: "{{ secrets_dir }}"
        state: directory
        owner: apache
        group: apache
        mode: 0500
    - name: Create htpasswd		#创建加密文件
      copy:
        src: "{{ secrets_src }}"
        dest: "{{ secrets_dest }}"
        owner: apache
        group: apache
        mode: 0400
    - name: Create index.html		#配置默认发布界面
      copy:
        content: "{{ ansible_facts['fqdn'] }} ({{ ansible_facts['all_ipv4_addresses'] }})\n"
        dest: "{{ web_root }}/index.html"
    - name: Configure furewalld service		#配置防火墙服务
      service:
        name: "{{ firewall_srv }}"
        state: started
        enabled: true
    - name: Firewalld permits https		#添加允许Apache服务访问
      firewalld:
        service: https
        state: enabled
        immediate: true
        permanent: true
    - name: Configure Apache Servicr		#配置Apache服务
      service:
        name: "{{ web_srv }}"
        state: started
        enabled: true

- name: Test Apache		#验证：测试Apache
  hosts: localhost
  become: no
  vars:
    - web_user: admin 		#指定用户身份为admin
  vars_files:
    - vars/secret.yml		#指定加密文件，需要后续创建
  tasks:
    - name: Connect Apache with Auth
      uri:
        url: https://servera.lab.example.com
        validate_certs: no	#没有证书
        force_basic_auth: yes	#打开强制基础认证
        user: "{{ web_user }}"
        passwd: "{{ web_pass }}"	#定义了访问 apache 的用户密码
        return_content: yes
        status_code: 200
      register: auth_test
    - debug:
        var: auth_test.content

（3）创建加密文件，设定加密用户访问Apache的用户密码为redhat
注意在受管主机上创建加密用户时，设定的加密用户密码一定也要是redhat：

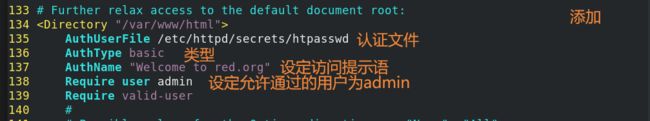

（4）创建files目录，建立Apache配置文件源和用户加密认证文件源：
为了方便可以从直接主机上复制本地上已经存在的Apache配置文件到当前项目目录中，再更改配置文件；用户加密认证文件在受管主机上生成后远程传输到主机中



（5）交互式进行语法检测，执行playbook：
ansible-playbook --syntax-check --vault-id @prompt playbook.yml
ansible-playbook --vault-id @prompt playbook.yml


（6）在受管主机中验证：
