xml获取配置DataTable
在CSDN写博客时，经常遇到需要绑定数据源的时候，可是自己从数据库获取数据的函数都是已经封装好了的，这样别人复制你的代码，要想看到结果，还得修改修改，很是麻烦，博客实例，数据源简单点就好，这样别人写你写的实例时，不用新建数据库，或者不用自己整个获取数据源的函数，效率低，我要的是快速看运行结果，实例是否是正确，能够把你的代码复制下来，F5运行就可以直接看到效果。所以我就写了一个通过XML获取配置DataTable.这样以后自己写博客，需要绑定数据源的时候，不同的数据源，修改一下XML就可以了。
下面的实例的所有数据源都是通过xml获取的

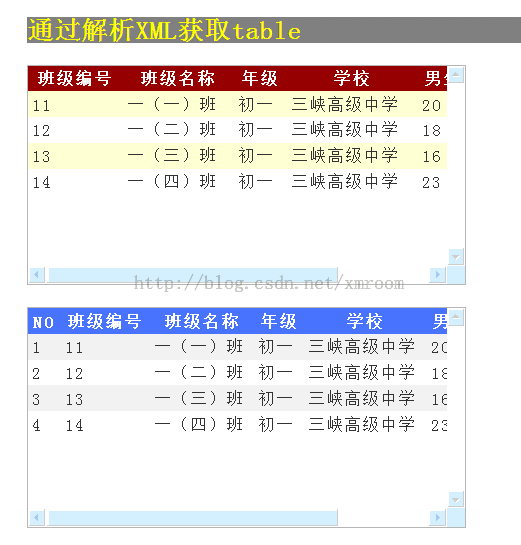

一，效果图
核心代码：
public DataTable getDTXML(string xmlname)
{
DataTable result = new DataTable();
string fileName = HttpContext.Current.Request.PhysicalApplicationPath + "\\Xml\\" + xmlname + ".xml";//xml的物理路径
XmlDocument xmlDoc = new XmlDocument();
xmlDoc.Load(fileName);
XmlNodeList xWitsTablesList = xmlDoc.SelectNodes("/config");
foreach (XmlNode xOracleNode in xWitsTablesList)
{
foreach (XmlNode node2 in xOracleNode.ChildNodes)
{
if (node2.Name == "Header")
{
// //绑定表头
foreach (XmlNode node3 in node2.Attributes)
{
result.Columns.Add(node3.Value);
}
}
else
{
//数据行
int i = 0;//列标志
DataRow dr = result.NewRow();
foreach (XmlNode node4 in node2.Attributes)
{
dr[i] = node4.Value.ToString();
i++;
}
result.Rows.Add(dr);
}
}
}
return result;
}
xml示例
<?xml version="1.0" encoding="utf-8" ?>
<config>
<Header col1="班级编号" col2="班级名称" col3="年级" col4="学校" col5="男生" col6="女生" col7="人数"/>
<row col1="11" col2="一（一）班" col3="初一" col4="三峡高级中学" col5="20" col6="30" col7="50"/>
<row col1="12" col2="一（二）班" col3="初一" col4="三峡高级中学" col5="18" col6="12" col7="30"/>
<row col1="13" col2="一（三）班" col3="初一" col4="三峡高级中学" col5="16" col6="26" col7="42"/>
<row col1="14" col2="一（四）班" col3="初一" col4="三峡高级中学" col5="23" col6="17" col7="40"/>
</config>
二，下面贴出源码：
1）表头配置.xml文件：
<?xml version="1.0" encoding="utf-8" ?>
<config>
<Header col1="班级编号" col2="班级名称" col3="年级" col4="学校" col5="男生" col6="女生" col7="人数"/>
<row col1="11" col2="一（一）班" col3="初一" col4="三峡高级中学" col5="20" col6="30" col7="50"/>
<row col1="12" col2="一（二）班" col3="初一" col4="三峡高级中学" col5="18" col6="12" col7="30"/>
<row col1="13" col2="一（三）班" col3="初一" col4="三峡高级中学" col5="16" col6="26" col7="42"/>
<row col1="14" col2="一（四）班" col3="初一" col4="三峡高级中学" col5="23" col6="17" col7="40"/>
</config>
2）readXml.aspx
<%@ Page Language="C#" AutoEventWireup="true" CodeFile="readXml.aspx.cs" Inherits="readXml" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
<title></title>
<link rel="Stylesheet" type="text/css" href="Css/readXml.css" />
</head>
<body>
<form id="form1" runat="server">
<div style=" margin-left:30px;"><h2 style="color:Yellow; background-color:Gray;" >通过解析XML获取table</h2></div>
<div class="gv_one">
<asp:GridView runat="server" ID="gv_xml"
CellPadding="4" Width="500px" ForeColor="#333333" GridLines="None" >
<AlternatingRowStyle BackColor="White" />
<FooterStyle BackColor="#990000" Font-Bold="True" ForeColor="White" />
<HeaderStyle BackColor="#990000" Font-Bold="True" ForeColor="White" />
<PagerStyle BackColor="#FFCC66" ForeColor="#333333" HorizontalAlign="Center" />
<RowStyle BackColor="#FFFBD6" ForeColor="#333333" />
<SelectedRowStyle BackColor="#FFCC66" Font-Bold="True" ForeColor="Navy" />
<SortedAscendingCellStyle BackColor="#FDF5AC" />
<SortedAscendingHeaderStyle BackColor="#4D0000" />
<SortedDescendingCellStyle BackColor="#FCF6C0" />
<SortedDescendingHeaderStyle BackColor="#820000" />
</asp:GridView>
</div>
<div class="gv_Two">
<asp:GridView runat="server" ID="gv_xmlOne"
CellPadding="4" Width="500px" ForeColor="#333333" GridLines="None" >
<AlternatingRowStyle BackColor="White" />
<EditRowStyle BackColor="#2461BF" />
<FooterStyle BackColor="#507CD1" Font-Bold="True" ForeColor="White" />
<HeaderStyle BackColor="#507CD1" Font-Bold="True" ForeColor="White" />
<PagerStyle BackColor="#2461BF" ForeColor="White" HorizontalAlign="Center" />
<RowStyle BackColor="#EFF3FB" />
<SelectedRowStyle BackColor="#D1DDF1" Font-Bold="True" ForeColor="#333333" />
<SortedAscendingCellStyle BackColor="#F5F7FB" />
<SortedAscendingHeaderStyle BackColor="#6D95E1" />
<SortedDescendingCellStyle BackColor="#E9EBEF" />
<SortedDescendingHeaderStyle BackColor="#4870BE" />
</asp:GridView>
</div>
</form>
</body>
</html>
3）readXml.aspx.cs
using System;
using System.Collections;
using System.Linq;
using System.Web;
using System.Web.Services;
using System.Web.Services.Protocols;
using System.Xml.Linq;
using System.Data;
using System.Data.SqlClient;
using System.Xml;
using System.Data.OleDb;
using IsXMLUtility;
public partial class readXml : System.Web.UI.Page
{
XmlHelper xmlHelper = new XmlHelper();
protected void Page_Load(object sender, EventArgs e)
{
InitGV();
}
private void InitGV()
{
DataTable dt1 = xmlHelper.getDTXML("表头配置");
gv_xml.DataSource = dt1.DefaultView;
gv_xml.DataBind();
dt1 = xmlHelper.getDTXML("表头配置", "N0", 1);
gv_xmlOne.DataSource = dt1.DefaultView;
gv_xmlOne.DataBind();
}
}
4) XmlHelper.cs
using System;
using System.Collections.Generic;
using System.Linq;
using System.Web;
using System.Data;
using System.Xml;
namespace IsXMLUtility
{
/// <summary>
///XmlHelper 的摘要说明
/// </summary>
public class XmlHelper
{
public XmlHelper()
{
//
//TODO: 在此处添加构造函数逻辑
//
}
public DataTable getDTXML(string xmlname)
{
DataTable result = new DataTable();
string fileName = HttpContext.Current.Request.PhysicalApplicationPath + "\\Xml\\" + xmlname + ".xml";//xml的物理路径
XmlDocument xmlDoc = new XmlDocument();
xmlDoc.Load(fileName);
XmlNodeList xWitsTablesList = xmlDoc.SelectNodes("/config");
foreach (XmlNode xOracleNode in xWitsTablesList)
{
foreach (XmlNode node2 in xOracleNode.ChildNodes)
{
if (node2.Name == "Header")
{
// //绑定表头
foreach (XmlNode node3 in node2.Attributes)
{
result.Columns.Add(node3.Value);
}
}
else
{
//数据行
int i = 0;//列标志
DataRow dr = result.NewRow();
foreach (XmlNode node4 in node2.Attributes)
{
dr[i] = node4.Value.ToString();
i++;
}
result.Rows.Add(dr);
}
}
}
return result;
}
/// <summary>
///
/// </summary>
/// <param name="xmlname">xml名字</param>
/// <param name="Header">序号列名字</param>
/// <param name="colsNumber">序号开始编号</param>
/// <returns></returns>
public DataTable getDTXML(string xmlname, string Header, int colsNumber)
{
DataTable result = new DataTable();
if (Header == "")
Header = "N0";
if (colsNumber < 0)
colsNumber = 1;
result.Columns.Add(Header);
string fileName = HttpContext.Current.Request.PhysicalApplicationPath + "\\Xml\\" + xmlname + ".xml";//xml的物理路径
XmlDocument xmlDoc = new XmlDocument();
xmlDoc.Load(fileName);
XmlNodeList xWitsTablesList = xmlDoc.SelectNodes("/config");
foreach (XmlNode xOracleNode in xWitsTablesList)
{
foreach (XmlNode node2 in xOracleNode.ChildNodes)
{
if (node2.Name == "Header")
{
//绑定表头
foreach (XmlNode node3 in node2.Attributes)
{
result.Columns.Add(node3.Value);
}
}
else
{
//数据行
int i = 1;//列标志
DataRow dr = result.NewRow();
dr[0] = colsNumber;
foreach (XmlNode node4 in node2.Attributes)
{
dr[i] = node4.Value.ToString();
i++;
}
colsNumber++;
result.Rows.Add(dr);
}
}
}
return result;
}
}
}
5) readXml.css
body{
margin:0 auto;
padding:0px;
font-family:'宋体';
}
.gv_one
{
margin-left:30px;
width:400px;
height:200px;
margin-top:20px;
border:#A8B7CC solid 1px;
background-color:#FFFFFF;
overflow: scroll;
SCROLLBAR-FACE-COLOR:#E0EDFE;
PADDING-BOTTOM: 0px;
SCROLLBAR-HIGHLIGHT-COLOR: #ffffff;
SCROLLBAR-SHADOW-COLOR: #cccccc;
SCROLLBAR-3DLIGHT-COLOR:#ffffff;
SCROLLBAR-ARROW-COLOR:#95AFD4;
PADDING-TOP: 0px;
SCROLLBAR-TRACK-COLOR: #ffffff;
SCROLLBAR-DARKSHADOW-COLOR: #ffffff;
LETTER-SPACING: 1pt;
}
.gv_Two
{
margin-left:30px;
width:400px;
height:200px;
margin-top:20px;
border:#A8B7CC solid 1px;
background-color:#FFFFFF;
overflow: scroll;
SCROLLBAR-FACE-COLOR:#E0EDFE;
PADDING-BOTTOM: 0px;
SCROLLBAR-HIGHLIGHT-COLOR: #ffffff;
SCROLLBAR-SHADOW-COLOR: #cccccc;
SCROLLBAR-3DLIGHT-COLOR:#ffffff;
SCROLLBAR-ARROW-COLOR:#95AFD4;
PADDING-TOP: 0px;
SCROLLBAR-TRACK-COLOR: #ffffff;
SCROLLBAR-DARKSHADOW-COLOR: #ffffff;
LETTER-SPACING: 1pt;
}
